Introduction



Spatial Analysis

The following is the different processes leading to the final analysis.

  • FUZZY
    • All surfaces are ranked for suitability based on some arbitrary decision. Non-linear stretch factor is assigned, but specific shape is depended on the factor involved


    Acidity - Winter

    Membership function: Sigmoidal
    a: 6.7
    b: 7.2
    c: 7.5
    d: 8.0



    Acidity - Summer

    Membership function: Sigmoidal
    a: 6.5
    b: 7.3
    c: 7.8
    d: 8.2




    Salinity - Winter

    Membership function: Sigmoidal
    a: --
    b: --
    c: 24
    d: 34




    Salinity - Summer

    Membership function: Sigmoidal
    a: --
    b: --
    c: 20
    d: 34




    Sea Surface Temperature - Winter

    Membership function: J-shaped
    a: 2
    b: 7
    c: --
    d: --



    Sea Surface Temperature - Summer

    Membership function: Sigmoidal
    a: 0
    b: 12.5
    c: 12.5
    d: 25



    Waveheight - Winter

    Membership function: J-shaped
    a: --
    b: --
    c: 0
    d: 3



    Waveheight - Summer

    Membership function: J-shaped
    a: --
    b: --
    c: 0
    d: 3

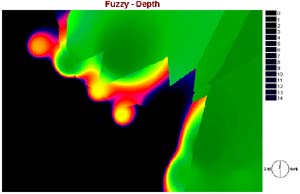

    Depth

    Membership function: Sigmoidal
    a: -500
    b: 0
    c: --
    d: --
