The GANTT Procedure

Example 4.11: Comparing Progress against a Baseline Schedule

Suppose that the widget manufacturing project is currently in progress and you want to measure its performance by comparing it with a baseline schedule. For example, the baseline schedule may be the originally planned schedule, a target schedule that you would like to achieve, or an existing schedule that you intend to improve on. The data for this example come from Example 2.13 which was used to illustrate the options available in PROC CPM. Prior to the beginning of the project, the predicted early schedule is saved by PROC CPM as the baseline schedule. Progress information for the project as of December 20, 1991 is saved in the ACTUAL data set. The variables SDATE and FDATE represent the actual start and actual finish times, respectively. The variables PCTC and RDUR represent the percent of work completed and the remaining days of work for each activity, respectively. PROC CPM is then invoked using the baseline and project progress information with TIMENOW set to December 20, 1991. The scheduling is carried out with the AUTOPUPDT option in order to automatically update progress information. The Schedule data set WIDGUPDT produced by PROC CPM is shown in Output 4.11.1. Notice that the building of the prototype (activity 5: 'Protoype') and development of a marketing strategy (activity 6: 'Mkt. Strategy') have a specified value for A_START and a missing value for A_FINISH, indicating that they are currently in progress at TIMENOW.

PROC GANTT is next invoked with the data set WIDGUPDT. This data set contains the actual schedule variables A_START and A_FINISH and the baseline schedule variables B_START and B_FINISH. The Gantt chart is drawn with three schedule bars per activity. The first bar represents the predicted early/late schedule based on the actual data specified, the second bar represents the actual schedule, and the third bar represents the baseline schedule. The TIMENOW= option is specified in the CHART statement to draw a timenow line on December 20, 1991. Actual schedule bars for 'Prototype' and 'Mkt. Strategy' are drawn up to TIMENOW to indicate that they are currently in progress. You can use the CTNOW=, LTNOW=, and WTNOW= options to change the color, linestyle, and width of the timenow line, respectively. To suppress the timenow label displayed at the bottom of the axis, specify the NOTNLABEL in the CHART statement.

   * estimate schedule based on actual data;

   proc cpm data=widgact holidata=holidays
            out=widgupdt date='2dec91'd;
      activity task;
      succ     succ1 succ2 succ3;
      duration days;
      holiday  holiday / holifin=(holifin);
      baseline / compare=early;
      actual / as=sdate af=fdate timenow='20dec91'd
               remdur=rdur pctcomp=pctc
               autoupdt;
   run;


   * sort the data;

   proc sort; by e_start;


   title 'Gantt Example 11';
   title2 'Progress Data';

   * print the data;

   proc print;
      var task e_: l_: a_start a_finish b_: ;
   run;

   title f=swiss 'Gantt Example 11';
   title2 f=swiss 'Comparing Project Progress against a Baseline Schedule';

   * plot the actual and baseline schedules using proc gantt;

   proc gantt data=widgupdt holidata=holidays;
      chart / holiday=(holiday) holifin=(holifin)
              timenow='20dec91'd dur=days
              scale=2 height=1.25 font=swiss
              pcompress;
      id task;
      run;

Output 4.11.1: Comparing Project Progress against a Baseline Schedule

Gantt Example 11
Progress Data

Obs task E_START E_FINISH L_START L_FINISH A_START A_FINISH B_START B_FINISH
1 Approve Plan 02DEC91 06DEC91 02DEC91 06DEC91 02DEC91 06DEC91 02DEC91 06DEC91
2 Anal. Market 06DEC91 10DEC91 06DEC91 10DEC91 06DEC91 10DEC91 07DEC91 11DEC91
3 Drawings 07DEC91 17DEC91 07DEC91 17DEC91 07DEC91 17DEC91 07DEC91 16DEC91
4 Write Specs 08DEC91 13DEC91 08DEC91 13DEC91 08DEC91 13DEC91 07DEC91 11DEC91
5 Mkt. Strat. 11DEC91 22DEC91 11DEC91 22DEC91 11DEC91 . 12DEC91 21DEC91
6 Prototype 18DEC91 05JAN92 18DEC91 05JAN92 18DEC91 . 17DEC91 04JAN92
7 Materials 06JAN92 15JAN92 06JAN92 15JAN92 . . 05JAN92 14JAN92
8 Facility 06JAN92 15JAN92 06JAN92 15JAN92 . . 05JAN92 14JAN92
9 Init. Prod. 16JAN92 25JAN92 16JAN92 25JAN92 . . 15JAN92 24JAN92
10 Evaluate 26JAN92 04FEB92 31JAN92 09FEB92 . . 25JAN92 03FEB92
11 Test Market 26JAN92 09FEB92 26JAN92 09FEB92 . . 25JAN92 08FEB92
12 Marketing 26JAN92 26JAN92 15FEB92 15FEB92 . . 25JAN92 25JAN92
13 Changes 10FEB92 14FEB92 10FEB92 14FEB92 . . 09FEB92 13FEB92
14 Production 15FEB92 15FEB92 15FEB92 15FEB92 . . 14FEB92 14FEB92

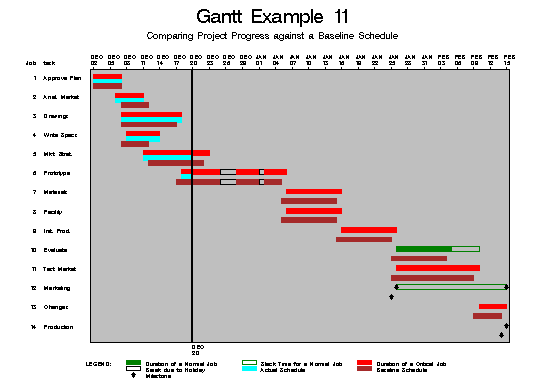

Output 4.11.2: Comparing Project Progress against a Baseline Schedule
