LAN Model 1: Single LAN

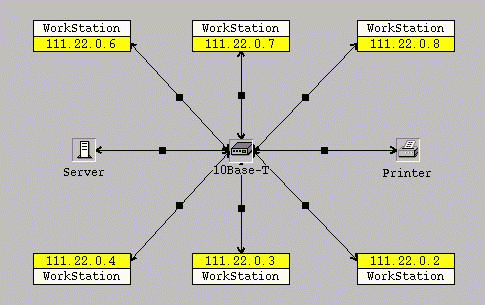

This LAN example (Figure 5.3) depicts a single LAN architecture with multiple Computing Device models attached to a Hub model. You could use this model to investigate how different MAC protocols might impact a specific application running on your LAN. Or you could analyze the effect of changing properties of the Server model or possibly adding another Server model and then redistributing traffic. Other possibilities include changing the average length of the distance between the Computing Device models and the Hub model or maybe examining the impact of adding a new application to your network.

Figure 5.3: LAN Model 1
