ARC |
Operating States: | SGOP |
Return Codes: | 0, 4, 61, 86 |
Syntax | |
Description | |
Argument Definitions | |
See Also |
Syntax |
return-code-variable=GDRAW('ARC', x, y, radius, start, end);
Description |
The GDRAW('ARC', . . . ) function draws a circular arc. The line attributes and bundles affect the appearance of this primitive. See DATA Step Graphics Interface Routines for a list of these attributes. Arguments Used with the GDRAW('ARC', ...) Function illustrates the arguments used with GDRAW('ARC', . . . ).

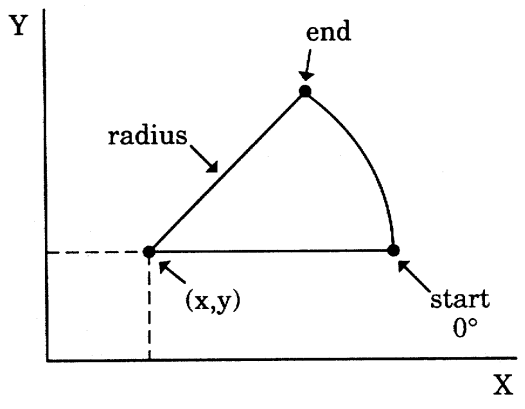

Arguments Used with the GDRAW('ARC', ...) Function
Argument Definitions |
x | numeric constant or numeric variable name; specifies the x coordinate of the position of the arc on the display; x coordinates are in units based on the current window system. |
y | numeric constant or numeric variable name; specifies the y coordinate of the position of the arc on the display; y coordinates are in units based on the current window system; |
radius | numeric constant or numeric variable name; the arc radius size is in units based on the current window system. |
start | numeric constant or numeric variable name; the starting angle of the arc is in degrees, with 0 degrees at 3 o'clock. |
end | numeric constant or numeric variable name; the ending angle of the arc is in degrees, with 0 degrees at 3 o'clock. |
See Also |
GDRAW('ELLARC', . . . ) function | |
GDRAW('PIE', . . . ) function | |
GSET('LINCOLOR', . . . ) function | |
GSET('LININDEX', . . . ) function | |
GSET('LINREP', . . . ) function | |
GSET('LINTYPE', . . . ) function | |
GSET('LINWIDTH', . . . ) function |
