SAS/GRAPH Software: Reference

DSGI Graphics Summary

The following sections summarize the functions and routines you can use to create graphics output with DSGI.


DSGI Functions

DSGI provides functions that

DATA Step Graphics Interface Functions summarizes the types of operations available and the functions used to invoke them. Refer to DATA Step Graphics Interface Dictionary for details about each function.

DATA Step Graphics Interface Functions
DSGI Operations Associated Function Function Description
Bundling Attributes (valid values for xxx are FIL, LIN, MAR, and TEX)

GSET('ASF', . . .) sets the aspect source flag of an attribute

GSET('xxxINDEX', . . . ) selects the bundle of attributes to use

GSET('xxxREP', . . . ) assigns attributes to a bundle
Setting Attributes That Affect Graphics Elements
color index GSET('COLREF'), . . .) assigns a color name to color index
fill area GSET('FILCOLOR', . . . ) selects the color of the fill area

GSET('FILSTYLE', . . . ) selects the pattern when FILTYPE is HATCH or PATTERN

GSET('FILTYPE', . . . ) specifies the type of interior for the fill area

GSET('HTML', . . . ) specifies the HTML string to invoke when an affected DSGI graphic element in a web page is clicked
line GSET('LINCOLOR', . . . ) selects the color of the line

GSET('LINTYPE', . . . ) sets the type of line

GSET('LINWIDTH', . . . ) specifies the width of the line
marker GSET('MARCOLOR', . . . ) selects the color of the marker

GSET('MARSIZE', . . . ) determines the size of the marker

GSET('MARTYPE', . . . ) sets the type of marker drawn
text GSET('TEXALIGN', . . . ) specifies horizontal and vertical alignment of text

GSET('TEXCOLOR', . . . ) selects the color of the text

GSET('TEXFONT', . . . ) sets the font for the text

GSET('TEXHEIGHT', . . . ) selects the height of the text

GSET('TEXPATH', . . . ) determines reading direction of text

GSET('TEXUP', . . . ) selects the angle of text
Setting Attributes That Affect Entire Graph

GSET('ASPECT', . . .) sets the aspect ratio

GSET('CATALOG', . . . ) selects the catalog to use

GSET('CBACK', . . . ) selects the background color

GSET('DEVICE', . . . ) specifies the output device

GSET('HPOS', . . . ) sets the number of columns in the graphics output area

GSET('HSIZE', . . . ) sets the width of the graphics output area in units of inches

GSET('VPOS', . . . ) sets the number of rows in the graphics output area

GSET('VSIZE', . . . ) sets the height of the graphics output area in units of inches
Managing Catalogs

GRAPH('COPY', . . .) copies a graph to another entry within the same catalog

GRAPH('DELETE', . . . ) deletes a graph

GRAPH('INSERT', . . . ) inserts a previously created graph into the currently open segment

GRAPH('RENAME', . . . ) renames a graph
Drawing Graphics Elements
arc GDRAW('ARC', . . .) draws a circular arc
bar GDRAW('BAR', . . . ) draws a rectangle that can be filled
ellipse GDRAW('ELLIPSE', . . . ) draws an oblong circle that can be filled
elliptical arc GDRAW('ELLARC', . . . ) draws an elliptical arc
fill area GDRAW('FILL', . . . ) draws a polygon that can be filled
line GDRAW('LINE', . . . ) draws a single line, a series of connected lines, or a dot
marker GDRAW('MARK', . . . ) draws one or more symbols
pie GDRAW('PIE', . . . ) draws a pie slice that can be filled
text GDRAW('TEXT', . . . ) draws a character string
Initializing DSGI

GINIT( ) initializes DSGI

GRAPH('CLEAR', . . . ) opens a segment to receive graphics primitives
Handling Messages

GDRAW('MESSAGE', . . .) prints a message in the SAS log

GPRINT(code) prints the description of a DSGI error code

GSET('MESSAGE', . . . ) turns message logging on or off
Ending DSGI

GRAPH('UPDATE', . . .) closes the currently open segment and, optionally, displays it

GTERM() ends DSGI
Activating Transformations

GET('TRANSNO', . . .) selects the transformation number of the viewport or window to use
Defining Viewports

GSET('CLIP', . . .) turns clipping on or off

GSET('VIEWPORT', . . . ) sets the coordinates of the viewport and assigns it a transformation number
Defining Windows

GSET('WINDOW', . . .) sets the coordinates of the window and assigns it a transformation number


DSGI Routines

DSGI routines return the values set by some of the DSGI functions. DATA Step Graphics Interface Routines summarizes the types of values that the GASK routines can check. Refer to DATA Step Graphics Interface Dictionary for details about each routine.

DATA Step Graphics Interface Routines
DSGI Operations Associated Routine Routine Description
Checking Attribute Bundles (valid values for xxx are FIL, LIN, MAR, and TEX)

GASK('ASK', . . .) returns the aspect source flag of the attribute

GASK('xxxINDEX', . . . ) returns the index of the active bundle

GASK('xxxREP', . . . ) returns the attributes assigned to the bundle
Checking Attribute Settings
color index GASK('COLINDEX', . . .) returns the color indices that currently have colors assigned to them

GASK('COLREP', . . . ) returns the color name assigned to the color index
fill area GASK('FILCOLOR', . . . ) returns the color of the fill area

GASK('FILSTYLE', . . . ) returns the index of the pattern when the FILTYPE is HATCH or PATTERN

GASK('FILTYPE', . . . ) returns the index of the type of interior

GASK('HTML', . . . ) finds the HTML string that is in effect when one of the following graphic elements is drawn: bar, ellipse, fill, mark, pie, and text.
line GASK('LINCOLOR', . . . ) returns the color index of the color of the line

GASK('LINTYPE', . . . ) returns the index of the type of line

GASK('LINWIDTH', . . . ) returns the width of the line
marker GASK('MARCOLOR', . . . ) returns the color index of the color of markers

GASK('MARSIZE', . . . ) returns the size of markers

GASK('MARTYPE', . . . ) returns the index of the type of marker drawn
text GASK('TEXALIGN', . . . ) returns the horizontal and vertical alignment of text

GASK('TEXCOLOR', . . . ) returns the color index of the color of text

GASK('TEXEXTENT', . . . ) returns the coordinates of text extent rectangle and the text concatenation point of the character string

GASK('TEXFONT', . . . ) returns the text font

GASK('TEXHEIGHT', . . . ) returns the height of text

GASK('TEXPATH', . . . ) returns the reading direction of text

GASK('TEXUP', . . . ) returns the character up vector in x vector and y vector
Checking Attributes That Affect Entire Graph

GASK('ASPECT', . . . ) returns the aspect ratio

GASK('CATALOG', . . . ) returns the current catalog

GASK('CBACK', . . . ) returns the background color

GASK('DEVICE', . . . ) returns the current output device

GASK('HPOS', . . . ) returns the number of columns in the graphics output area

GASK('HSIZE', . . . ) returns the width of the graphics output area in units of inches

GASK('MAXDISP', . . . ) returns the dimensions of maximum display area for the device in meters and pixels

GASK('VPOS', . . . ) returns the number of rows in the graphics output area

GASK('VSIZE', . . . ) returns the height of the graphics output area in units of inches
Querying Catalogs

GASK('GRAPHLIST', . . .) returns the names of graphs in the current catalog

GASK('NUMGRAPH', . . . ) returns the number of graphs in the current catalog

GASK('OPENGRAPH', . . . ) returns the name of the currently open graph
Checking System Status

GASK('STATE', . . .) returns the current operating state

GASK('WSACTIVE', . . . ) returns whether or not the workstation is active

GASK('WSOPEN', . . . ) returns whether or not the workstation is open
Checking Transformation Definitions

GASK('TRANS', . . .) returns the coordinates of the viewport and window associated with the transformation

GASK('TRANSNO', . . . ) returns the active transformation number
Checking Viewport Definitions

GASK('CLIP', . . .) returns the status of clipping

GASK('VIEWPORT', . . . ) returns the coordinates of the viewport assigned to the transformation number
Checking Window Definitions

GASK('WINDOW', . . .) returns the coordinates of the window assigned to the transformation number


Creating Simple Graphics with DSGI

Within any DSGI program, you need to follow these basic steps:

  1. Initialize DSGI.

    The function that initializes DSGI is GINIT(). GINIT() loads the graphics sublibrary, opens a workstation, and activates a workstation.

  2. Open a graphics segment.

    Before you can submit graphics primitives, you must submit the GRAPH('CLEAR', . . .) function. GRAPH('CLEAR', . . .) opens a graphic segment so that graphics primitives can be submitted.

  3. Generate graphics elements.

    DSGI can generate arcs, bars, ellipses, elliptical arcs, lines, markers, pie slices, polygons (fill areas), and text. These graphics elements are all produced with the GDRAW function using their associated operator names.

    GDRAW functions can only be submitted when a graphics segment is open. Therefore, they must be submitted between the GRAPH('CLEAR', . . .) and GRAPH('UPDATE', . . .) functions.

  4. Close the graphics segment.

    Once the attribute and graphics statements have been entered, you must submit statements to close the graphics segment and output the graph. The GRAPH('UPDATE', . . .) function closes the graphic segment currently open and, optionally, displays the graphics output.

  5. End DSGI.

    The GTERM() function ends DSGI by deactivating and closing the workstation, and closing the graphics sublibrary. It frees any memory allocated by DSGI.

    Note: You must execute a RUN statement at the end of the DATA step to display the output.

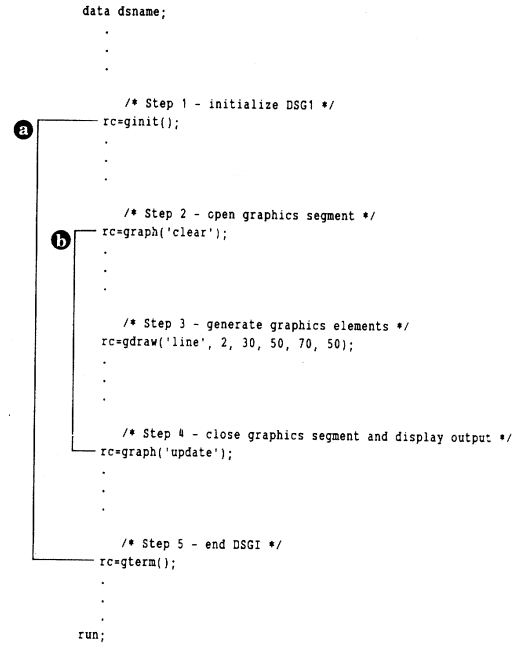

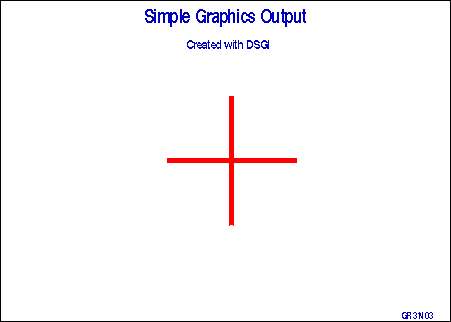

Basic Steps Used in Creating DSGI Graphics Output outlines the basic steps and shows the functions used to initiate steps 1, 2, 4, and 5. Step 3 can consist of many types of functions. The GDRAW('LINE', . . . ) function is used as an example.

Basic Steps Used in Creating DSGI Graphics Output

[IMAGE]

Notice that there are two pairs of functions that work together within a DSGI DATA step (shown by a and b in Basic Steps Used in Creating DSGI Graphics Output). The first pair, GINIT() and GTERM(), begin and end DSGI. Within the first pair, the second pair, GRAPH('CLEAR', . . . ) and GRAPH('UPDATE', . . . ) begin and end a graphics segment. You can repeat these pairs within a single DATA step to produce multiple graphics output; however, the relative positions of these functions must be maintained within a DATA step. See Generating Multiple Graphics Output in One DATA Step for more information about producing multiple graphics outputs from one DATA step.

The order of these steps is controlled by DSGI operating states. Before any DSGI function or routine can be submitted, the operating state in which that function or routine can be submitted must be active. See How Operating States Control the Order of DSGI Statements.

Setting Attributes for Graphics Elements

The appearance of the graphics elements is determined by the settings of the attributes. Attributes control such aspects as height of text; text font; and color, size, and width of the graphics element. In addition, the HTML attribute determines whether the element provides a link to another graphic or web page. Attributes are set and reset with GSET functions. GASK routines return the current setting of the attribute specified.

Each graphics primitive is associated with a particular set of attributes. Its appearance or linking capability can only be altered by that set of attributes. Graphics Output Primitive Functions and Associated Attributes lists the operators used with GDRAW functions to generate graphics elements and the attributes that control them.

Graphics Output Primitive Functions and Associated Attributes
Graphics Output Primitive Functions Associated Attributes
Arc GDRAW('ARC', . . . ) HTML, LINCOLOR, LININDEX, LINREP, LINTYPE, LINWIDTH
Bar GDRAW('BAR', . . . ) FILCOLOR, FILINDEX, FILREP, FILSTYLE, FILTYPE, HTML
Ellipse GDRAW('ELLIPSE', . . . ) FILCOLOR, FILINDEX, FILREP, FILSTYLE, FILTYPE, HTML
Elliptical Arc GDRAW('ELLARC', . . . ) HTML, LINCOLOR, LININDEX, LINREP, LINTYPE, LINWIDTH
Fill Area GDRAW('FILL', . . . ) FILCOLOR, FILINDEX, FILREP, FILSTYLE, FILTYPE, HTML
Line GDRAW('LINE', . . . ) HTML, LINCOLOR, LININDEX, LINREP, LINTYPE, LINWIDTH
Marker GDRAW('MARK', . . . ) HTML, MARCOLOR, MARINDEX, MARREP, MARSIZE, MARTYPE
Pie GDRAW('PIE', . . . ) FILCOLOR, FILINDEX, FILREP, FILSTYLE, FILTYPE, HTML
Text GDRAW('TEXT', . . . ) HTML, TEXALIGN, TEXCOLOR, TEXFONT, TEXHEIGHT, TEXINDEX, TEXPATH, TEXREP, TEXUP

Attribute functions must precede the graphics primitive they control. Once an attribute is set, it controls any associated graphics primitives that follow. If you want to change the setting, you can issue another GSET(attribute, . . . ) function with the new setting.

If you do not set an attribute before you submit a graphics primitive, DSGI uses the default value for the attribute. Refer to DATA Step Graphics Interface Dictionary for the default values used for each attribute.

How Operating States Control the Order of DSGI Statements

Each DSGI function and routine can only be submitted when certain operating states are active. This restriction affects the order of functions and routines within the DATA step. Generally, the operating states within a DATA step follow this order:
GKCL → WSAC → SGOP → WSAC → GKCL

Functions That Change the Operating State

The functions described earlier in steps 1, 2, 4, and 5 actually control the changes to the operating state. For example, the GINIT() function must be submitted when the operating state is GKCL, the initial state of DSGI. GINIT() then changes the operating state to WSAC. The GRAPH('CLEAR', . . . ) function must be submitted when the operating state is WSAC and before any graphics primitives are submitted. The reason it precedes graphics primitives is that it changes the operating state to SGOP, the operating state in which you can submit graphics primitives. The following list shows the change in the operating state due to specific functions:

GINIT() GKCL → WSAC
GRAPH('CLEAR', . . . ) WSAC → SGOP
GRAPH('UPDATE', . . . ) SGOP → WSAC
GTERM() WSAC → GKCL

Because these functions change the operating state, you must order all other functions and routines so that the change in operating state is appropriate for the functions and routines that follow. The following program statements show how the operating state changes from step to step in a typical DSGI program. They also summarize the functions and routines that can be submitted under each operating state. The functions that change the operating state are included as actual statements. Refer to Operating States for the operating states from which functions and routines can be submitted.

data dsname;

      /* GKCL - initial state of DSGI; can execute:             */
      /*   1. GSET functions that set attributes                */
      /*      that affect the entire graphics output            */
      /*   2. some catalog management functions                 */
      /*      (some GRAPH functions)                            */

      /* Step 1 - initialize DSGI             */
   rc=ginit();

      /* WSAC - workstation is active; can execute:             */
      /*   1. most GASK routines                                */
      /*   2. some catalog management functions                 */
      /*      (some GRAPH functions)                            */
      /*   3. GSET functions that set attributes                */
      /*      and bundles, viewports, windows,                  */
      /*      transformations, and message logging              */

      /* Step 2 - open a graphics segment     */
   rc=graph('clear', 'text');

      /* SGOP - segment open; can execute:                      */
      /* 1. any GASK routine                                    */
      /* 2. any GDRAW function                                  */
      /* 3. some catalog management functions                   */
      /*    (some GRAPH functions)                              */
      /* 4. GSET functions that set attributes                  */
      /*    and bundles, viewports, windows,                    */
      /*    transformations, and message logging                */

      /* Step 3 - execute graphics primitives */
   rc = gdraw('line', 2, 30,50,50,50);

      /* Step 4 - close the graphics segment  */
   rc=graph('update');

      /* WSAC - workstation is active; can execute:             */
      /*  1. most GASK routines                                 */
      /*  2. some catalog management functions                  */
      /*     (some GRAPH functions)                             */
      /*  3. GSET functions that set attributes                 */
      /*     and bundles, viewports, windows,                   */
      /*     transformations, and message logging               */

      /* Step 5 - end DSGI */
   rc=gterm();

      /* GKCL - initial state of DSGI         */
run;

Order of Functions and Routines

Functions and routines within each operating state can technically be submitted in any order; however, once an attribute is set, it remains in effect until the end of the DATA step or until you change its value. If you are producing multiple graphics output within the same DATA step, the attributes for one output affect the ones that follow. Attributes are not reset until after the GTERM() function is submitted.

Notice that you can set attributes for the graphics primitives in several places. As long as the functions that set the attributes are executed before the graphics primitives, they will affect the graphics output. If you execute them after a graphics primitive, the primitive is not affected. See Setting Attributes for Graphics Elements.

The following program statements illustrate a more complex DSGI program that produces Simple Graphics Output Generated with DSGI when submitted. Notice that all attributes for a graphics primitive are executed before the graphics primitive. In addition, the GINIT() and GTERM() pairing and the GRAPH('CLEAR') and GRAPH('UPDATE') pairing are maintained within the DATA step. Refer to Operating States for the operating states in which each function and routine can be submitted.

/* set the graphics environment */
goptions reset=global gunit=pct border
         hsize=7 in vsize=5 in
         targetdevice=pscolor;

   /* execute a DATA step with DSGI */
data dsname;
      /* initialize SAS/GRAPH software */
      /* to accept DSGI statements     */
   rc=ginit();
   rc=graph('clear');

      /* assign colors to color index */
   rc=gset('colrep', 1, 'blue');
   rc=gset('colrep', 2, 'red');

      /* define and display titles */
   rc=gset('texcolor', 1);
   rc=gset('texfont', 'swissb');
   rc=gset('texheight', 6);
   rc=gdraw('text', 45, 93, 'Simple Graphics Output');

      /* change the height and */
      /* display second title  */
   rc=gset('texheight', 4);
   rc=gdraw('text', 58, 85, 'Created with DSGI');

      /* define and display footnotes */
      /* using same text font and     */
      /* color as defined for titles  */
   rc=gset('texheight', 3);
   rc=gdraw('text', 125, 1, 'GR31N03  ');

      /* define and draw bar */
   rc=gset('lincolor', 2);
   rc=gset('linwidth', 5);
   rc=gdraw('line', 2, 72, 72, 30, 70);
   rc=gdraw('line', 2, 52, 92, 50, 50);

      /* display graph and end DSGI */
   rc=graph('update');
   rc=gterm();
run;

Simple Graphics Output Generated with DSGI

[IMAGE]


Bundling Attributes

DSGI allows you to bundle attributes. As a result, you can select a group of attribute values rather than having to select each one individually. This feature is useful if you use the same attribute settings over and over within the same DATA step.

To use an attribute bundle, you assign the values of the attributes to a bundle index. When you want to use those attributes for a graphics primitive, you select the bundle rather than set each attribute separately.

Attributes That Can Be Bundled for Each Graphics Primitive

Each graphics primitive has a group of attributes associated with it that can be bundled. Only the attributes in that group can be assigned to the bundle. Attributes That Can Be Bundled for Each Graphics Primitive shows the attributes that can be bundled for each graphics primitive.

Note:    You do not have to use attribute bundles for all graphics primitives if you use a bundle for one. You can define bundles for some graphics primitives and set the attributes individually for others.  [cautionend]

However, if the other graphics primitives are associated with the same attributes you have bundled and you do not want to use the same values, you can use other bundles to set the attributes, or you can set the attributes back to 'INDIVIDUAL'.

Attributes That Can Be Bundled for Each Graphics Primitive
Graphics Output Primitive Associated Attributes That Can Be Bundled
GDRAW('ARC', . . . ) LINCOLOR, LINTYPE, LINWIDTH
GDRAW('BAR', . . . ) FILCOLOR, FILSTYLE, FILTYPE
GDRAW('ELLARC', . . . ) LINCOLOR, LINTYPE, LINWIDTH
GDRAW('ELLIPSE', . . . ) FILCOLOR, FILSTYLE, FILTYPE
GDRAW('FILL', . . . ) FILCOLOR, FILSTYLE, FILTYPE
GDRAW('LINE', . . . ) LINCOLOR, LINTYPE, LINWIDTH
GDRAW('MARK', . . . ) MARCOLOR, MARSIZE, MARTYPE
GDRAW('PIE', . . . ) FILCOLOR, FILSTYLE, FILTYPE
GDRAW('TEXT', . . . ) TEXCOLOR, TEXFONT


Assigning Attributes to a Bundle

To assign values of attributes to a bundle, you must

The following example assigns the text attributes, color, and font, to the bundle indexed by the number 1. As shown in the GSET('TEXREP', . . . ) function, the color for the bundle is green, the second color in the COLOR= graphics option. The font for the bundle is the 'ZAPF' font. (See COLREP for an explanation of how colors are used in DSGI.)

goptions colors=(red green blue);

data dsname;
.
.     /* other DATA step statements */
.
      /* associate the bundle with the index 1 */
   rc=gset('texrep', 1, 2, 'zapf');
.
.     /* more statements */
.
      /* assign the text attributes to a bundle */
   rc=gset('asf', 'texcolor', 'bundled');
   rc=gset('asf', 'texfont', 'bundled');

      /* draw the text */
   rc=gdraw('text', 50, 50, 'Today is the day.');

The bundled attributes are used when an associated GDRAW function is executed. If the ASF of an attribute is not set to 'BUNDLED' at the time a GDRAW function is executed, DSGI searches for a value to use in the following order:

  1. the current value of the attribute

  2. the default value of the attribute.


Selecting a Bundle

Once you have issued the GSET('ASF', . . . ) and GSET('xxx REP', . . . ) functions, you can issue the GSET('xxx INDEX', . . . ) function to select the bundle. The following statement selects the bundle defined in the previous example:

/* invoke the bundle of text attributes */
   rc=gset('texindex', 1);

The 1 in this example corresponds to the index number specified in the GSET('TEXREP', . . . ) function.

Defining Multiple Bundles for a Graphics Primitive

You can set up more than one bundle for graphics primitives by issuing another GSET('xxx REP', . . . ) function with a different index number. If you wanted to add a second attribute bundle for text to the previous example, you could issue the following statement:

/* define another attribute bundle for text */
   rc=gset('texrep', 2, 3, 'swiss');

When you activate the second bundle, the graphics primitives for the text that follows will use the third color, blue, and the SWISS font.

Note:    When using a new bundle, you do not need to reissue the GSET('ASF', . . . ) functions for the attributes that will be bundled. Once the ASF of an attribute has been set, the setting remains in effect until it is changed.  [cautionend]

How DSGI Selects the Value of an Attribute to Use

Attributes that are bundled override any of the same attributes that are individually set. For example, you assign the line color green, the type 1, and the width 5 to a line bundle with the following statements:

goptions colors=(red green blue);
rc=gset('asf', 'lincolor', 'bundled');
rc=gset('asf', 'linwidth', 'bundled');
rc=gset('asf', 'lintype', 'bundled');
rc=gset('linrep', 3, 2, 5, 1);

In subsequent statements, you activate the bundle, select other attributes for the line, and then draw a line:

/* activate the bundle */
rc=gset('linindex', 3);

   /* select other attributes for the line */
rc=gset('lincolor', 3);
rc=gset('linwidth', 10);
rc=gset('lintype', 4);

   /* draw a line from point (30,50) to (70,50) */
rc=gdraw('line', 2, 30, 70, 50, 50);

The color, type, and width associated with the line bundle are used rather than the attributes set just before the GDRAW('LINE', . . . ) function was executed. The line that is drawn is green (the second color from the colors list of the COLORS= graphics option), 5 units wide, and solid (line type 1).

During processing, DSGI chooses the value of an attribute using the following logic:

  1. Get the index of the active line bundle.

  2. Check the ASF of the LINCOLOR attribute. If the ASF is 'INDIVIDUAL', the value selected with GSET('LINCOLOR', . . .) is used; otherwise, the LINCOLOR associated with the bundle index is used.

  3. Check the ASF of the LINTYPE attribute. If the ASF is 'INDIVIDUAL', the value selected with GSET('LINTYPE', . . .) is used; otherwise, the LINTYPE associated with the bundle index is used.

  4. Check the ASF of the LINWIDTH attribute. If the ASF is 'INDIVIDUAL', the value selected with GSET('LINWIDTH', . . .) is used; otherwise, the LINWIDTH associated with the bundle index is used.

  5. Draw the line using the appropriate color, type, and width for the line.


Disassociating an Attribute from a Bundle

To disassociate an attribute from a bundle, use the GSET('ASF', . . . ) function to reset the ASF of the attribute to 'INDIVIDUAL'. The following program statements demonstrate how to disassociate the attributes from the text bundle:

/* disassociate an attribute from a bundle */
   rc=gset('asf', 'texcolor', 'individual');
   rc=gset('asf', 'texfont', 'individual');


Using Viewports and Windows

In DSGI, you can define viewports and windows. Viewports enable you to subdivide the graphics output area and insert existing graphs or draw graphics elements in smaller sections of the graphics output area. Windows define the coordinate system within a viewport and enable you to scale the graph or graphics elements drawn within the viewport.

The default viewport is defined as (0,0) to (1,1) with 1 being 100 percent of the graphics output area. If you do not define a viewport, graphics elements or graphs are drawn using the default.

The default window is defined so that a rectangle drawn from window coordinates (0,0) to (100,100) is square and fills the display in one dimension. The actual dimensions of the default window are device dependent. Use the GASK('WINDOW', . . . ) routine to find the exact dimensions of your default window. You can define a window without defining a viewport. The coordinate system of the window is used with the default viewport.

If you define a viewport, you can position it anywhere in the graphics output area. You can define multiple viewports within the graphics output area so that more than one existing graph, part of a graph, or more than one graphics element can be inserted into the graphics output.

Transformations activate both a viewport and the associated window. DSGI maintains 21 (0 through 20) transformations. By default, transformation 0 is active. Transformation 0 always uses the entire graphics output area for the viewport and maps the window coordinates to fill the viewport. The definition of the viewport and window of transformation 0 may not be changed.

By default, the viewports and windows of all the other transformations (1 through 20) are set to the defaults for viewports and windows. If you want to define a different viewport or window, you must select a transformation number between 1 and 20.

You generally follow these steps when defining viewports or windows:

These steps can be submitted in any order; however, if you use a transformation you have not defined, the default viewport and window are used. Once you activate a transformation, the graphics elements drawn by the subsequent DSGI functions are drawn in the viewport and window associated with that transformation.

Defining Viewports

You can define a viewport with the GSET('VIEWPORT', n, . . . ) function, where n is the transformation number of the viewport you are defining. You can also use this function to define multiple viewports, each containing a portion of the graphics output area. You can then place a separate graph, part of a graph, or graphics elements within each viewport.

The following program statements divide the graphics output area into four subareas:

/* define the first viewport, indexed by 1 */
rc=gset('viewport', 1, .05, .05, .45, .45);

   /* define the second viewport, indexed by 2 */
rc=gset('viewport', 2, .55, .05, .95, .45);

   /* define the third viewport, indexed by 3 */
rc=gset('viewport', 3, .55, .55, .95, .95);

   /* define the fourth viewport, indexed by 4 */
rc=gset('viewport', 4, .05, .55, .45, .95);

Once you define the viewports, you can insert existing graphs or draw graphics elements in each viewport by activating the transformation of that viewport.

Clipping around Viewports

When you use viewports, you also may need to use the clipping feature. Even though you have defined the dimensions of your viewport, it is possible for graphics elements to display past its boundaries. If the graphics elements are too large to fit into the dimensions you have defined, portions of the graphics elements actually display outside of the viewport. To ensure that only the portions of the graphics elements that fit within the dimensions of the viewport display, turn the clipping feature on by using the GSET('CLIP', . . . ) function. For details, see CLIP.

Defining Windows

You can define a window by using the GSET('WINDOW',n, . . . ) function, where n is the transformation number of the window you are defining. If you are defining a window for a viewport you have also defined, n must match the transformation number of the viewport.

You can scale the x and y axes differently for a window. The following program statements scale the axes for each of the four viewports defined earlier in "Defining Viewpoints":

/* define the window for viewport 1 */
rc=gset('window', 1, 0, 50, 20, 100);

   /* define the window for viewport 2 */
rc=gset('window', 2, 0, 40, 20, 90);

   /* define the window for viewport 3 */
rc=gset('window', 3, 10, 25, 45, 100);

   /* define the window for viewport 4 */
rc=gset('window', 4, 0, 0, 100, 100);

See Scaling Graphs by Using Windows for an example of using windows to scale graphs.

Note:    When you define a window for a viewport, the transformation numbers in the GSET('VIEWPORT', . . . ) and GSET('WINDOW', . . . ) functions must match in order for DSGI to activate them simultaneously.  [cautionend]

Activating Transformations

Once you have defined a viewport or window, you must activate the transformation in order for DSGI to use the viewport or window. To activate the transformation, use the GSET('TRANSNO',n, . . . ) function where n has the same value as n in GSET('VIEWPORT',n, . . . ) or GSET('WINDOW',n, . . . ).

The following program statements illustrate how to activate the viewports and windows defined in the previous examples:

/* define the viewports */
   .
   .
   .
   /* define the windows */
   .
   .
   .
   /* activate the first transformation */
gset('transno', 1);
.
.  /* graphics primitive functions follow */
.
   /* activate the second transformation */
gset('transno', 2);
.
.  /* graphics primitive functions follow */
.
   /* activate the third transformation */
gset('transno', 3);
.
.  /* graphics primitive functions follow */
.
   /* activate the fourth transformation */
gset('transno', 4);
.
.  /* graphics primitive functions follow */
.

When you activate these transformations, your display is logically divided into four subareas as shown in Graphics Output Area Divided into Four Logical Transformations.

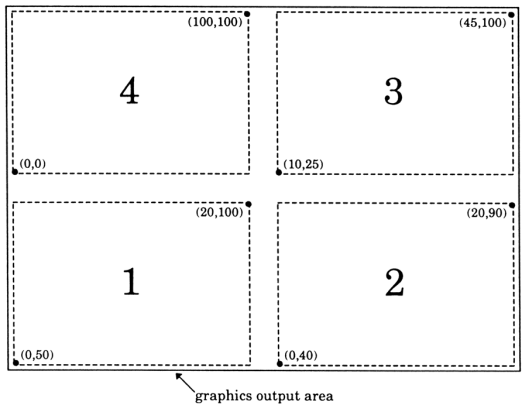

Graphics Output Area Divided into Four Logical Transformations

[IMAGE]

If you want to use the default viewport and window after selecting different ones, execute the GSET('TRANSNO', 0) function to reselect the default transformation for DSGI.


Inserting Existing Graphs into DSGI Graphics Output

You can insert existing graphs into graphics output you are creating. The graph you insert must be in the same catalog in which you are currently working. Follow these steps to insert an existing graph:

  1. Use the GSET('CATALOG', . . . ) function to set the output catalog to the catalog that contains the existing graph.

    Note:    Unless you are using the WORK library, you must have previously defined the libref in a LIBNAME statement or window when using GSET('CATALOG', . . . ).  [cautionend]

  2. Define a viewport with the dimensions and position of the place in the graphics output where you want to insert the existing graph. GSET('VIEWPORT',n, . . . ) defines a viewport and GSET('WINDOW',n, . . . ) defines a window.

  3. Define a window as (0,0) to (100,100) so that the inserted graph is not distorted. The graph must have a square area defined to avoid the distortion. If your device does not have a square graphics output area, the window defaults to the units of the device rather than (0,0) to (100,100) and may distort the graph.

  4. Activate the transformation number n, as defined in the viewport function, and possibly in the window function, using GSET('TRANSNO', n, . . . ).

  5. Use the GRAPH('INSERT', . . . ) function with the name of the existing graph.

The following program statements provide an example of including an existing graph in the graphics output being created. The name of the existing graph is 'MAP'. 'LOCAL' points to the library containing the catalog 'MAPCTLG'. The coordinates of the viewport are percentages of the graphics output area. SAS-data-library refers to a permanent SAS data library.

Graphics Output Area Divided into Four Logical Transformations
libname local 'SAS-data-library'; . . . /* select the output catalog to the */ /* catalog that contains 'map' */ rc=gset('catalog', 'local', 'mapctlg'); . . . /* define the viewport to contain the */ /* existing graph */ rc=gset('viewport', 1, .25, .45, .75, .9); rc=gset('window', 1, 0, 0, 100, 100); /* set the transformation number to the one */ /* defined in the viewport function */ rc=gset('transno', 1); /* insert the existing graph */ rc=graph('insert', 'map');

These statements put the existing graph 'MAP' in the upper half of the graphics output.


Generating Multiple Graphics Output in One DATA Step

You can produce more than one graphics output within the same DATA step. All statements between the GRAPH('CLEAR', . . . ) and GRAPH('UPDATE', . . . ) functions will produce one graphics output.

Each time the GRAPH('UPDATE', . . . ) function is executed, a graph is displayed. After the GTERM() function is executed, no more graphs are displayed for the DATA step. The GINIT() function must be executed again to produce more graphs.

CAUTION:
Be careful using global SAS/GRAPH statements when you are producing multiple output from within the DATA step.   [cautionend]

If you use global SAS/GRAPH statements when producing multiple output from one DATA step, the last definition of the statements is used for all displays.


Processing DSGI Statements in Loops

You can process DSGI statements in loops to draw a graphics element multiple times in one graphics output or to produce multiple output. If you use loops, you must maintain the GRAPH('CLEAR', . . . ) and GRAPH('UPDATE', . . . ) pairing within the GINIT() and GTERM() pairing. (See Basic Steps Used in Creating DSGI Graphics Output.) The following program statements illustrate how you can use DSGI statements to produce multiple graphics output for different output devices:

data _null_;
   length d1-d5 $ 8;
   input d1-d5;
   array devices{5} d1-d5;
   .
   .
   .
   do j=1 to 5;
      rc=gset('device', devices{j});
      .
      .
      .
      rc=ginit();
      .
      .
      .
      do i=1 to 5;
         rc=graph('clear');
         rc=gset('filcolor', i);
         rc=gdraw('bar', 45, 45, 65, 65);
         rc=graph('update');
      end;
      .
      .
      .
      rc=gterm();
   end;
   cards;
tek4105 hp7475 ps qms800 ibm3279
;
run;

The inner loop produces five graphs for each device. Each graphics output produced by the inner loop consists of a bar. The bar uses a different color for each graph. The outer loop produces all of the graphs for five different devices. A total of 25 graphs is generated by these loops.


Examples

The following examples show different applications for DSGI and illustrate some of its features such as defining viewports and windows, inserting existing graphs, angling text, using GASK routines, enlarging a segment of a graph, and scaling a graph.

These examples use some additional graphics options that may not be used in other examples in this book. Because the dimensions of the default window vary across devices, the TARGETDEVICE=, HSIZE=, and VSIZE= graphics options are used to make the programs more portable. The COLORS= graphics option provides a standard colors list.

Refer to DATA Step Graphics Interface Dictionary for a complete description of each of the functions used in the examples.

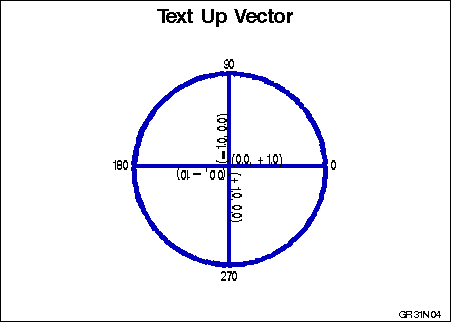

Vertically Angling Text

This example generates a pie chart with text that changes its angle as you rotate around the pie. DSGI positions the text by aligning it differently depending on its location on the pie. In addition, DSGI changes the angle of the text so that it aligns with the spokes of the pie.

This example illustrates how global statements can be used with DSGI. In this example, FOOTNOTE and TITLE statements create the footnotes and title for the graph. The GOPTIONS statement defines general aspects of the graph. The COLORS= graphics option provides a colors list from which the colors referenced in
GSET('xxx COLOR', . . . ) functions are selected.

The following program statements produce Text Angled with the GSET('TEXUP', ...) Function:

/* set the graphics environment */
goptions reset=global gunit=pct border
         ftext=swissb htitle=6 htext=3
         colors=(black blue green red)
         hsize=7 in vsize=5 in
         targetdevice=pscolor;

   /* define the footnote and title */
footnote1 j=r 'GR31N04  ';
title1 'Text Up Vector';

   /* execute DATA step with DSGI */
data vector;

      /* prepare SAS/GRAPH software */
      /* to accept DSGI statements  */
   rc=ginit();
   rc=graph('clear');

      /* define and display arc  */
      /* with intersecting lines */
   rc=gset('lincolor', 2);
   rc=gset('linwidth', 5);
   rc=gdraw('arc', 84, 50, 35, 0, 360);
   rc=gdraw('line', 2, 49, 119, 51, 51);
   rc=gdraw('line', 2, 84, 84, 15, 85);

      /* define height of text */
   rc=gset('texheight', 5);

      /* mark 360 degrees on the arc */
      /* using default align         */
   rc=gdraw('text', 121, 50, '0');

      /* set text to align to the right and */
      /* mark 180 degrees on the arc        */
   rc=gset('texalign', 'right', 'normal');
   rc=gdraw('text', 47, 50, '180');

      /* set text to align to the center and */
      /* mark 90 and 270 degrees on the arc  */
   rc=gset('texalign', 'center', 'normal');
   rc=gdraw('text', 84, 87, '90');
   rc=gdraw('text', 84, 9, '270');

      /* reset texalign to normal and          */
      /* display coordinate values or quadrant */
   rc=gset('texalign', 'normal', 'normal');
   rc=gdraw('text', 85, 52, '(0.0, +1.0)');

      /* rotate text using TEXUP and           */
      /* display coordinate values or quadrant */
   rc=gset('texup', 1.0, 0.0);
   rc=gdraw('text', 85, 49, '(+1.0, 0.0)');

      /* rotate text using TEXUP and           */
      /* display coordinate values or quadrant */
   rc=gset('texup', 0.0, -1.0);
   rc=gdraw('text', 83, 50, '(0.0, -1.0)');

      /* rotate text using TEXUP and           */
      /* display coordinate values or quadrant */
   rc=gset('texup', -1.0, 0.0);
   rc=gdraw('text', 83, 52, '(-1.0, 0.0)');

      /* display graph and end DSGI */
   rc=graph('update');
   rc=gterm();
run;

Text Angled with the GSET('TEXUP', ...) Function

[IMAGE]

This example illustrates the following features:


Changing the Reading Direction of the Text

This example changes the reading direction of text. Notice that the data set name is _NULL_. No data set is created as a result of this DATA step; however, the graphics output is generated. The following program statements produce Reading Direction of the Text Changed with the GSET('TEXPATH', ...) Function:

   /* set the graphics environment */
goptions reset=global gunit=pct border
         ftext=swissb htitle=6 htext=3
         colors=(black blue green red)
         hsize=7 in vsize=5 in
         targetdevice=pscolor;

   /* define the footnote and title */
footnote1 j=r 'GR31N05  ';
title1 'Text Path';

   /* execute DATA step with DSGI */
data _null_;

      /* prepare SAS/GRAPH software */
      /* to accept DSGI statements  */
   rc=ginit();
   rc=graph('clear');

      /* define height of text */
   rc=gset('texheight', 5);

      /* display first text */
   rc=gdraw('text', 105, 50, 'Right');

      /* change text path so that text reads from */
      /* right to left and display next text      */
   rc=gset('texpath', 'left');
   rc=gdraw('text', 65, 50, 'Left');

      /* change text path so that text reads up */
      /* the display and display next text      */
   rc=gset('texpath', 'up');
   rc=gdraw('text', 85, 60, 'Up');

      /* change text path so that text reads down */
      /* the display and display next text        */
   rc=gset('texpath', 'down');
   rc=gdraw('text', 85, 40, 'Down');

      /* display the graph and end DSGI */
   rc=graph('update');
   rc=gterm();
run;

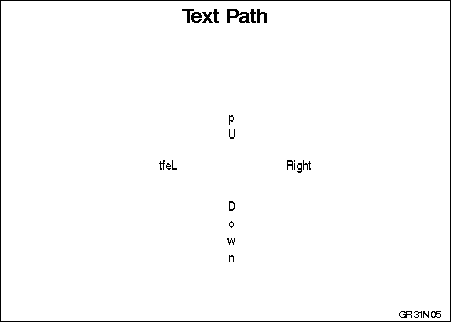

Reading Direction of the Text Changed with the GSET('TEXPATH', ...) Function

[IMAGE]

Features not explained earlier in "Vertically Angling Text" are described here:


Using Viewports in DSGI

This example uses the GCHART procedure to generate a graph, defines a viewport in which to display it, and inserts the GCHART graph into the graphics output being created by DSGI. Pie Chart Produced with the GCHART Procedure shows the pie chart created by the GCHART procedure. Pie Chart Inserted into DSGI Graph by Using a Viewport shows the same pie chart after it has been inserted into a DSGI graph.

   /* set the graphics environment */
goptions reset=global gunit=pct border
         ftext=swissb htitle=6 htext=4
         colors=(black blue green red)
         hsize=7 in vsize=7 in
         targetdevice=pscolor;


   /* create data set TOTALS */
data totals;
   length dept $ 7 site $ 8;
   do year=1996 to 1999;
      do dept='Parts','Repairs','Tools';
         do site='New York','Atlanta','Chicago','Seattle';
            sales=ranuni(97531)*10000+2000;
            output;
         end;
      end;
   end;
run;

   /* define the footnote */
footnote1 h=3 j=r 'GR31N06  ';

   /* generate pie chart from TOTALS */
   /* and create catalog entry PIE   */
proc gchart data=totals;
   format sales dollar8.;
   pie site
       / type=sum
         sumvar=sales
         midpoints='New York' 'Chicago' 'Atlanta' 'Seattle'
         fill=solid
         cfill=green
         coutline=blue
         angle=45
         percent=inside
         value=inside
         slice=outside
         noheading
         name='gr31n06';
run;

   /* define the titles */
title1 'Total Sales';
title2 'For Period 1996-1999';

   /* execute DATA step with DSGI */
data piein;

      /* prepare SAS/GRAPH software */
      /* to accept DSGI statements  */
   rc=ginit();
   rc=graph('clear');

      /* define and activate viewport for inserted graph */
   rc=gset('viewport', 1, .15, .05, .85, .90);
   rc=gset('window', 1, 0, 0, 100, 100);
   rc=gset('transno', 1);

      /* insert graph created from GCHART procedure */
   rc=graph('insert', 'gr31n06');

      /* display graph and end DSGI */
   rc=graph('update');
   rc=gterm();
run;

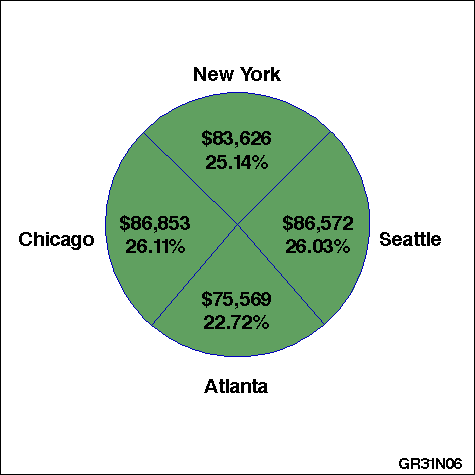

Pie Chart Produced with the GCHART Procedure

[IMAGE]

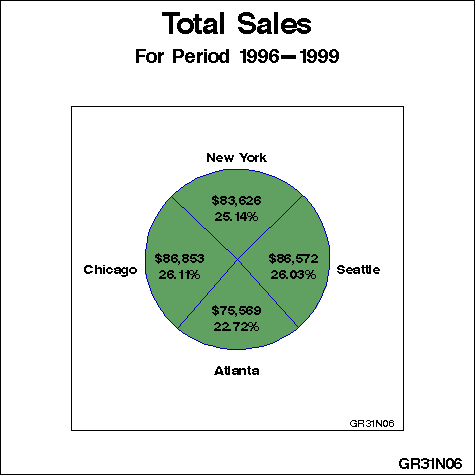

Pie Chart Inserted into DSGI Graph by Using a Viewport

[IMAGE]

Features not explained in previous examples are described here:


Scaling Graphs by Using Windows

This example uses the GPLOT procedure to generate a plot of AMOUNT*MONTH and store the graph in a permanent catalog. DSGI then scales the graph by defining a window in another DSGI graph and inserting the GPLOT graph into that window. Plot Produced with the GPLOT Procedure shows the plot as it is displayed with the GPLOT procedure. Plot Scaled by Using a Window in DSGI shows how the same plot is displayed when the x axis is scaled from 15 to 95 and the y axis is scaled from 15 to 75.

   /* set the graphics environment */
goptions reset=global gunit=pct border
         ftext=swissb htitle=6 htext=3
         colors=(black blue green red)
         hsize=7 in vsize=5 in
         targetdevice=pscolor;

   /* create data set EARN, which holds month */
   /* and amount of earnings for that month   */
data earn;
   input month amount;
   datalines;
1 2.1
2 3
3 5
4 6.4
5 9
6 7.2
7 6
8 9.8
9 4.4
10 2.5
11 5.75
12 4.35
;
run;

   /* define the footnote for the first graph */
footnote1 j=r 'GR31N07(a)  ';

   /* define axis and symbol characteristics */
axis1 label=(color=green 'Millions of Dollars')
      order=(1 to 10 by 1)
      value=(color=green);
axis2 label=(color=green 'Months')
      order=(1 to 12 by 1)
      value=(color=green Tick=1 'Jan' Tick=2 'Feb' Tick=3 'Mar'
             Tick=4 'Apr' Tick=5 'May' Tick=6 'Jun'
             Tick=7 'Jul' Tick=8 'Aug' Tick=9 'Sep'
             Tick=10 'Oct' Tick=11 'Nov' Tick=12 'Dec');

symbol value=M font=special height=8 interpol=join
       color=blue width=3;

   /* generate a plot of AMOUNT * MONTH,          */
   /* and store in member GR31N07                 */
proc gplot data=earn;
   plot amount*month
        / haxis=axis2
          vaxis=axis1
          name='gr31n07';
run;

   /* define the footnote and titles for       */
   /* second graph, which will scale output */
footnote1 j=r 'GR31N07(b)  ';
title1 'XYZ Corporation Annual Earnings';
title2 h=4 'Fiscal Year 1999';

   /* execute DATA step with DSGI using  */
   /* catalog entry created in previous  */
   /* plot, but do not create a data set */
   /* (determined by specifying _NULL_)  */
data _null_;

      /* prepare SAS/GRAPH software */
      /* to accept DSGI statements */
   rc=ginit();
   rc=graph('clear');

      /* define viewport and window for inserted graph */
   rc=gset('viewport', 1, .20, .30, .90, .75);
   rc=gset('window', 1, 15, 15, 95, 75);
   rc=gset('transno', 1);

      /* insert graph previously created */
   rc=graph('insert', 'gr31n07');

      /* display graph and end DSGI */
   rc=graph('update');
   rc=gterm();
run;

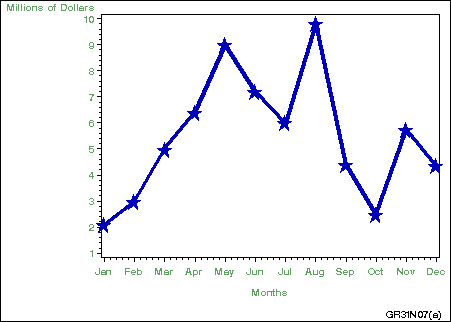

Plot Produced with the GPLOT Procedure

[IMAGE]

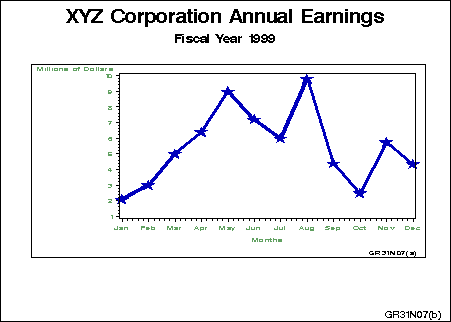

Plot Scaled by Using a Window in DSGI

[IMAGE]

One feature not explained in previous examples is described here:


Enlarging an Area of a Graph by Using Windows

This example illustrates how you can enlarge a section of a graph by using windows. In the first DATA step, the program statements generate graphics output that contains four pie charts. The second DATA step defines a window that enlarges the bottom-left quadrant of the graphics output and inserts 'GR31N08' into that window. The following program statements produce Four Pie Charts Generated with DSGI from the first DATA step, and Area of the Graph Enlarged by Using Windows from the second DATA step:

   /* set the graphics environment */
goptions reset=global gunit=pct border
         ftext=swissb htext=3
         colors=(black blue green red)
         hsize=7 in vsize=5 in
         targetdevice=pscolor;

   /* define the footnote for the first graph */
footnote1 j=r 'GR31N08(a)  ';

   /* execute DATA step with DSGI */
data plot;

      /* prepare SAS/GRAPH software */
      /* to accept DSGI statements  */
   rc=ginit();
   rc=graph('clear', 'gr31n08');

      /* define and draw first pie chart */
   rc=gset('filcolor', 4);
   rc=gset('filtype', 'solid');
   rc=gdraw('pie', 30, 75, 22, 0, 360);

      /* define and draw second pie chart */
   rc=gset('filcolor', 1);
   rc=gset('filtype', 'solid');
   rc=gdraw('pie', 30, 25, 22, 0, 360);

      /* define and draw third pie chart */
   rc=gset('filcolor', 3);
   rc=gset('filtype', 'solid');
   rc=gdraw('pie', 90, 75, 22, 0, 360);

      /* define and draw fourth pie chart */
   rc=gset('filcolor', 2);
   rc=gset('filtype', 'solid');
   rc=gdraw('pie', 90, 25, 22, 0, 360);

      /* display graph and end DSGI */
   rc=graph('update');
   rc=gterm();
run;

   /* define the footnote for the second graph */
footnote1 j=r 'GR31N08(b)  ';

   /* execute DATA step with DSGI   */
   /* that zooms in on a section of */
   /* the previous graph            */
data zoom;

      /* prepare SAS/GRAPH software */
      /* to accept DSGI statements  */
   rc=ginit();
   rc=graph('clear');

      /* define and activate a window     */
      /* that will enlarge the lower left */
      /* quadrant of the graph            */
   rc=gset('window', 1, 0, 0, 50, 50);
   rc=gset('transno', 1);

      /* insert the previous graph into */
      /* window 1                       */
   rc=graph('insert', 'gr31n08');

      /* display graph and end DSGI */
   rc=graph('update');
   rc=gterm();
run;

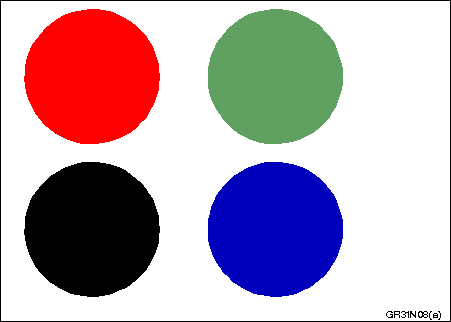

Four Pie Charts Generated with DSGI

[IMAGE]

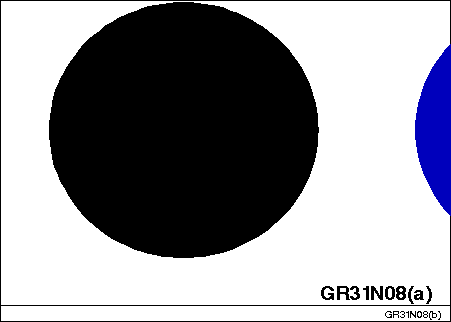

Area of the Graph Enlarged by Using Windows

[IMAGE]

Features not explained in previous examples are described here:


Using GASK Routines in DSGI

This example illustrates how to invoke GASK routines and how to display the returned values in the SAS log and write them to a data set.

This example assigns a predefined color to color index 2 and then invokes a GASK routine to get the name of the color associated with color index 2. The value returned from the GASK call is displayed in the log and written to a data set. Checking the Color Associated with a Particular Color Index shows how the value appears in the log. Writing the Value of an Attribute to a Data Set shows how the value appears in the data set in the OUTPUT window.

   /* execute DATA step with DSGI */
data routine;

      /* declare character variables used */
      /* in GASK subroutines              */
   length color $ 8;

      /* prepare SAS/GRAPH software */
      /* to accept DSGI statements  */
   rc=ginit();
   rc=graph('clear');

      /* set color for color index 2 */
   rc=gset('colrep', 2, 'orange');

      /* check color associated with color index 2 and */
      /* display the value in the LOG window           */
   call gask('colrep', 2, color, rc);
   put 'Current FILCOLOR =' color;
   output;

      /* end DSGI */
   rc=graph('update');
   rc=gterm();
run;

   /* display the contents of ROUTINE */
proc print data=routine;
run;

Checking the Color Associated with a Particular Color Index
 3       /* execute DATA step with DSGI */
 4    data routine;
 5
 6          /* declare character variables used */
 7          /* in GASK subroutines              */
 8       length color $ 8;
 9
 10         /* prepare SAS/GRAPH software */
 11         /* to accept DSGI statements  */
 12      rc=ginit();
 13      rc=graph('clear');
 14
 15         /* set color for color index 2 */
 16      rc=gset('colrep', 2, 'orange');
 17
 18         /* check color associated with color index 2 and */
 19         /* display the value in the LOG window           */
 20      call gask('colrep', 2, color, rc);
 21      put 'Current FILCOLOR =' color;
 22      output;
 23
 24         /* end DSGI */
 25      rc=graph('update');
 26      rc=gterm();
 27   run;

 Current FILCOLOR =ORANGE

Writing the Value of an Attribute to a Data Set
The SAS System             13:50 Tuesday, December 22, 1998   1

   Obs    color     rc

    1     ORANGE     0

Features not explained in previous examples are described here:

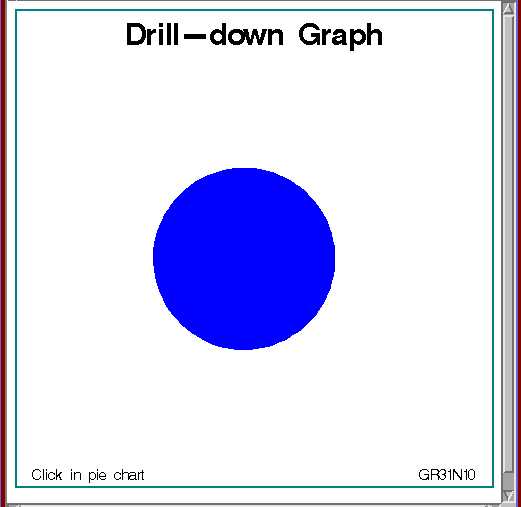

Generating a Drill-down Graph Using DSGI

This example uses ODS processing with DSGI to generate a drill-down graph. To get the drill-down capability, you use the GSET('HTML',...) function to specify a URL that points to the location of the target output. This HTML string can be used with the following graphic element types drawn in the code after the string is set: BAR, ELLIPSE, FILL, MARK, PIE, and TEXT. The example uses a PIE element type.

Note:   The example assumes users will access the output through a file system rather than accross the Web, so the HTML string uses a file specification rather than a full URL. For information on bringing SAS/GRAPH output to the Web, see Bringing SAS/GRAPH Output to the Web. For specific information about drill-down graphs, see About Drill-down Graphs.  [cautionend]

This example also includes a FILENAME statement to allocate an aggregate storage location for the HTML and GIF files produced by the code. You should replace the term path-to-Web-server with the location where you want to store the files.

In the example, the ODS HTML statement is used to create a body file named dsgi.htm. When file dsgi.htm is viewed in a Web browser, it displays a solid pie chart, as shown in Drill-down Graph Generated with DSGI. To drill down to the graph shown in Target Output for Drill-down Graph, click anywhere in the pie chart. This example uses PROC GSLIDE to create the simple graphic that is used for the target output:

   /* This is the only line you have to  */
   /* change to run the program. Specify */
   /* a location in your file system.    */
filename odsout 'path-to-Web-server';

   /* close the listing destination */
ods listing close;

   /* set the graphics environment */
goptions reset=global gunit=pct noborder
         ftitle=swissb htitle=6
         ftext=swiss htext=3
         colors=(black blue)
         hsize=5 in vsize=5 in
         device=gif;

   /* define tile and footnote for graph */
title1 'Drill-down Graph';
footnote1 j=l '  Click in pie chart'
          j=r 'GR31N10  ';

ods html body='dsgi.htm'
         path=odsout;

   /* execute DATA step with DSGI */
data _null_;
      /* prepare SAS/GRAPH software */
      /* to accept DSGI statements  */
   rc=ginit();
   rc=graph('clear');
      /* set a value for the html variable */
   rc=gset('html', 'href="blue.htm"');

      /* define and draw a pie chart */
   rc=gset('filcolor', 2);
   rc=gset('filtype', 'solid');
   rc=gdraw('pie', 55, 50, 22, 0, 360);

      /* generate graph and end DSGI */
   rc=graph('update');
   rc=gterm();
run;

goptions ftext=centb ctext=blue;

   /* open a new body file for the */
   /* target output                */
ods html body='blue.htm'
         path=odsout;

title1;
footnote1;
proc gslide wframe=4
     cframe=blue
     name='blue';
     note height=20;
     note height=10
          justify=center
          'Blue Sky';
run;
quit;

ods html close;
ods listing;

Drill-down Graph Generated with DSGI

[IMAGE]

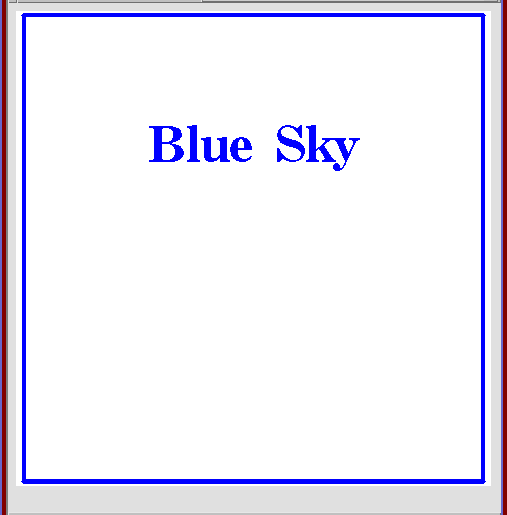

Target Output for Drill-down Graph

[IMAGE]

Features not explained in previous examples are described here:


See Also

Storing Graphics Output in SAS Catalogs
for an explanation of graphics catalogs and catalog entries

Graphics Options and Device Parameters Dictionary
for complete information about graphics options

TITLE, FOOTNOTE, and NOTE Statements
for details of using the TITLE and FOOTNOTE statements

GOPTIONS Statement
for details of using the GOPTIONS statement

The Annotate Data Set
for an explanation of the Annotate facility

DATA Step Graphics Interface Dictionary
for complete information on the functions and routines used with DSGI

SAS Language Reference: Dictionary
for information about additional functions and statements that can be used in the DATA step


Chapter Contents

Previous

Next

Top of Page

Copyright 1999 by SAS Institute Inc., Cary, NC, USA. All rights reserved.
