Example 42.3: Cluster Analysis with Significance Tests
This example uses artificial data containing two clusters.
One cluster is from a circular bivariate normal distribution.
The other is a ring-shaped cluster that completely surrounds the first
cluster.
Without significance tests, the ring is divided into several
sample clusters for any degree of smoothing that yields
reasonable density estimates. The JOIN= option puts the ring
back together. Output 42.3.1 displays a short summary generated
from the first PROC MODECLUS statement.
Output 42.3.2 contains a series of tables produced
from the second PROC MODECLUS statement. The lack of p-value
in the JOIN= option makes joining continue until only one cluster
remains
(see the description of the
JOIN= option).
The cluster memberships are then
plotted
as displayed in Output 42.3.3.
title 'Modeclus Analysis with the JOIN= option';
title2 'A Normal Cluster Surrounded by a Ring Cluster';
options ls=120 ps=38;
data circle; keep x y;
c=1;
do n=1 to 30;
x=rannor(5);
y=rannor(5);
output;
end;
c=2;
do n=1 to 300;
x=rannor(5);
y=rannor(5);
z=rannor(5)+8;
l=z/sqrt(x**2+y**2);
x=x*l;
y=y*l;
output;
end;
axis1 label=(angle=90 rotate=0) minor=none
order=(-10 to 10 by 5);
axis2 minor=none order=(-15 to 15 by 5);
proc modeclus data=circle m=1 r=1 to 3.5 by .25 join=20 short;
proc modeclus data=circle m=1 r=2.5 join out=out;
proc gplot data=out;
plot y*x=cluster/frame cframe=ligr
vzero nolegend
vaxis=axis1 haxis=axis2 ;
by _NJOIN_;
run;
Output 42.3.1: Significance Tests with the JOIN=20 and SHORT Options
Modeclus Analysis with the JOIN= option |
A Normal Cluster Surrounded by a Ring Cluster |
Cluster Summary |
R |
Number of Clusters Joined |
Maximum P-value |
Number of Clusters |
Frequency of Unclassified Objects |
1 |
36 |
0.9339 |
1 |
301 |
1.25 |
20 |
0.7131 |
1 |
301 |
1.5 |
10 |
0.3296 |
1 |
300 |
1.75 |
5 |
0.1990 |
2 |
0 |
2 |
5 |
0.0683 |
2 |
0 |
2.25 |
3 |
0.0504 |
2 |
0 |
2.5 |
4 |
0.0301 |
2 |
0 |
2.75 |
3 |
0.0585 |
2 |
0 |
3 |
5 |
0.0003 |
1 |
0 |
3.25 |
4 |
0.1923 |
2 |
0 |
3.5 |
4 |
0.0000 |
1 |
0 |
|
Output 42.3.2: Significance Tests with the JOIN Option
Modeclus Analysis with the JOIN= option |
A Normal Cluster Surrounded by a Ring Cluster |
The MODECLUS Procedure |
R=2.5 METHOD=1 |
Cluster Statistics |
-Saddle Test: Version 92.7- |
Cluster |
Frequency |
Maximum Estimated Density |
Boundary Frequency |
Estimated Saddle Density |
Mode Count |
Saddle Count |
Overlap Count |
Z |
Approx P-value |
1 |
103 |
0.00617328 |
22 |
0.00308664 |
39 |
19 |
0 |
2.495 |
0.5055 |
2 |
71 |
0.00571029 |
20 |
0.0043213 |
36 |
27 |
9 |
1.193 |
0.999 |
3 |
53 |
0.00509296 |
18 |
0.00401263 |
32 |
25 |
10 |
0.986 |
0.9999 |
4 |
45 |
0.00478429 |
19 |
0.00354964 |
30 |
22 |
14 |
1.429 |
0.9924 |
5 |
30 |
0.00462996 |
0 |
. |
29 |
0 |
. |
3.611 |
0.0301 |
6 |
28 |
0.00370397 |
17 |
0.00354964 |
23 |
22 |
9 |
0.000 |
1 |
|
Modeclus Analysis with the JOIN= option |
A Normal Cluster Surrounded by a Ring Cluster |
The MODECLUS Procedure |
R=2.5 METHOD=1 |
Cluster Statistics |
-Saddle Test: Version 92.7- |
Cluster |
Frequency |
Maximum Estimated Density |
Boundary Frequency |
Estimated Saddle Density |
Mode Count |
Saddle Count |
Overlap Count |
Z |
Approx P-value |
1 |
103 |
0.00617328 |
22 |
0.00308664 |
39 |
19 |
0 |
2.495 |
0.5055 |
2 |
71 |
0.00571029 |
20 |
0.0043213 |
36 |
27 |
9 |
1.193 |
0.999 |
3 |
53 |
0.00509296 |
18 |
0.00401263 |
32 |
25 |
10 |
0.986 |
0.9999 |
4 |
73 |
0.00478429 |
13 |
0.00293231 |
30 |
18 |
0 |
1.588 |
0.9778 |
5 |
30 |
0.00462996 |
0 |
. |
29 |
0 |
. |
3.611 |
0.0301 |
|
Modeclus Analysis with the JOIN= option |
A Normal Cluster Surrounded by a Ring Cluster |
The MODECLUS Procedure |
R=2.5 METHOD=1 |
Cluster Statistics |
-Saddle Test: Version 92.7- |
Cluster |
Frequency |
Maximum Estimated Density |
Boundary Frequency |
Estimated Saddle Density |
Mode Count |
Saddle Count |
Overlap Count |
Z |
Approx P-value |
1 |
156 |
0.00617328 |
17 |
0.00246931 |
39 |
15 |
0 |
3.130 |
0.1318 |
2 |
71 |
0.00571029 |
20 |
0.0043213 |
36 |
27 |
9 |
1.193 |
0.999 |
3 |
73 |
0.00478429 |
13 |
0.00293231 |
30 |
18 |
0 |
1.588 |
0.9778 |
4 |
30 |
0.00462996 |
0 |
. |
29 |
0 |
. |
3.611 |
0.0301 |
|
Modeclus Analysis with the JOIN= option |
A Normal Cluster Surrounded by a Ring Cluster |
The MODECLUS Procedure |
R=2.5 METHOD=1 |
Cluster Statistics |
-Saddle Test: Version 92.7- |
Cluster |
Frequency |
Maximum Estimated Density |
Boundary Frequency |
Estimated Saddle Density |
Mode Count |
Saddle Count |
Overlap Count |
Z |
Approx P-value |
1 |
156 |
0.00617328 |
17 |
0.00246931 |
39 |
15 |
0 |
3.130 |
0.1318 |
2 |
144 |
0.00571029 |
14 |
0.00293231 |
36 |
18 |
0 |
2.313 |
0.6447 |
3 |
30 |
0.00462996 |
0 |
. |
29 |
0 |
. |
3.611 |
0.0301 |
|
Modeclus Analysis with the JOIN= option |
A Normal Cluster Surrounded by a Ring Cluster |
The MODECLUS Procedure |
R=2.5 METHOD=1 |
Cluster Statistics |
-Saddle Test: Version 92.7- |
Cluster |
Frequency |
Maximum Estimated Density |
Boundary Frequency |
Estimated Saddle Density |
Mode Count |
Saddle Count |
Overlap Count |
Z |
Approx P-value |
1 |
300 |
0.00617328 |
0 |
. |
39 |
0 |
. |
4.246 |
0.0026 |
2 |
30 |
0.00462996 |
0 |
. |
29 |
0 |
. |
3.611 |
0.0301 |
|
Modeclus Analysis with the JOIN= option |
A Normal Cluster Surrounded by a Ring Cluster |
The MODECLUS Procedure |
R=2.5 METHOD=1 |
Cluster Statistics |
-Saddle Test: Version 92.7- |
Cluster |
Frequency |
Maximum Estimated Density |
Boundary Frequency |
Estimated Saddle Density |
Mode Count |
Saddle Count |
Overlap Count |
Z |
Approx P-value |
1 |
300 |
0.00617328 |
0 |
. |
39 |
0 |
. |
4.246 |
0.0026 |
|
Modeclus Analysis with the JOIN= option |
A Normal Cluster Surrounded by a Ring Cluster |
Cluster Summary |
R |
Number of Clusters Joined |
Maximum P-value |
Number of Clusters |
Frequency of Unclassified Objects |
2.5 |
0 |
1.0000 |
6 |
0 |
2.5 |
1 |
0.9999 |
5 |
0 |
2.5 |
2 |
0.9990 |
4 |
0 |
2.5 |
3 |
0.6447 |
3 |
0 |
2.5 |
4 |
0.0301 |
2 |
0 |
2.5 |
5 |
0.0026 |
1 |
30 |
|

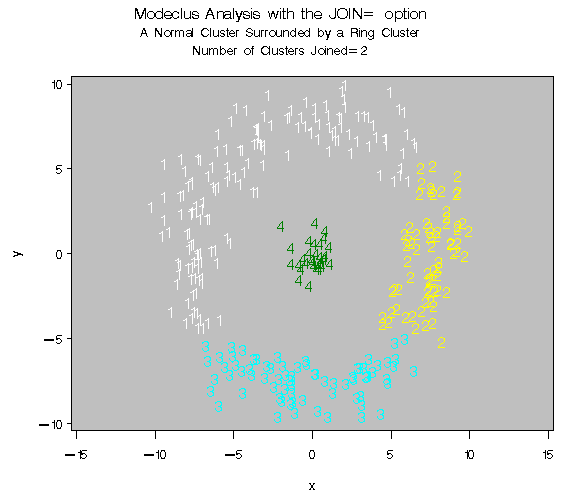

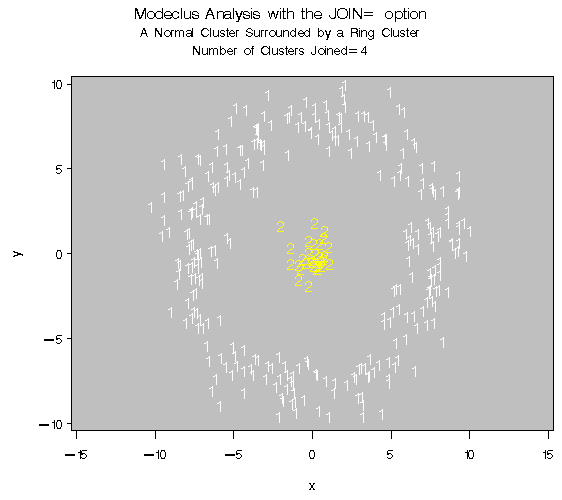

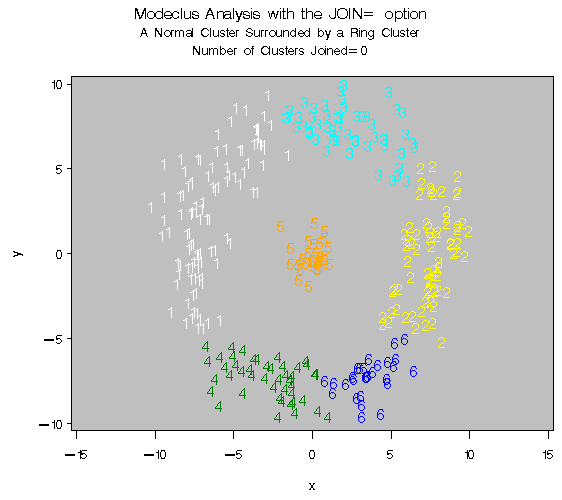

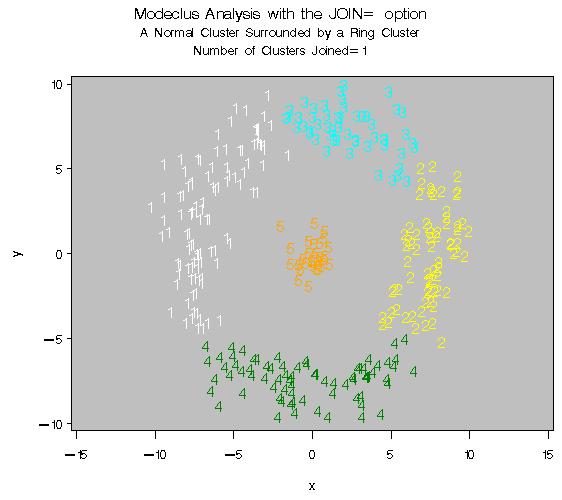

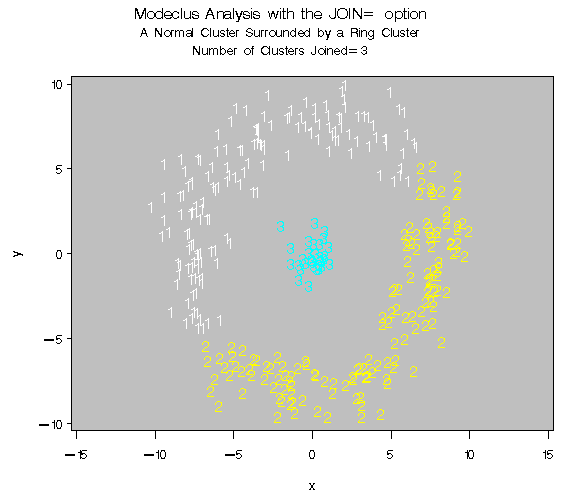

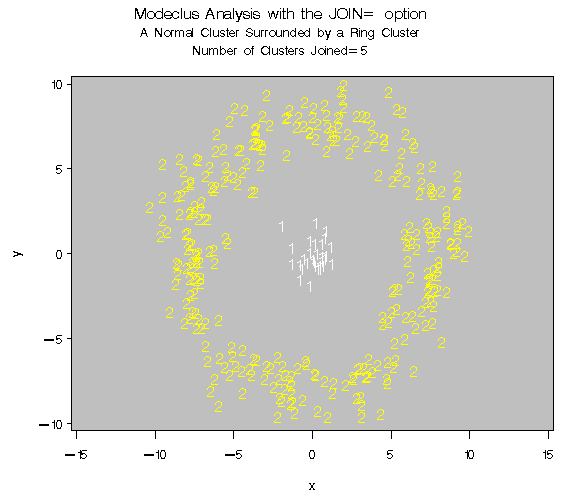

Output 42.3.3: Scatter Plots of Cluster Memberships by _NJOIN_
