Analyzing the Sample Path

Server Utilization

The utilization of a server is another measure of system performance that is often of interest. Estimates on the probability that a server is busy is one statistic for measuring utilization. If after collecting data using the Collect Data check box on the Simulation Control panel, you select a server from the components list box and click the Analyze button, you get a printout similar to that shown in Figure 8.9.

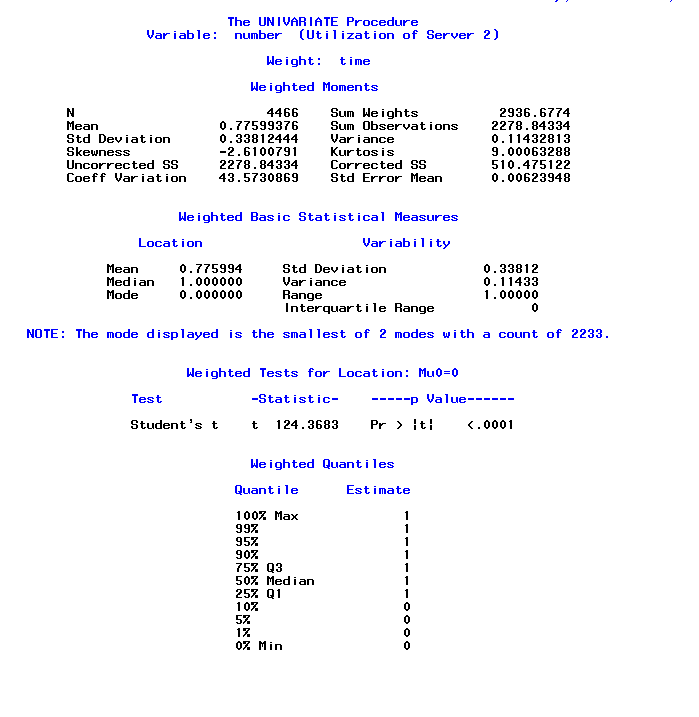

Figure 8.9: Statistics on Server Utilization

The mean shown is approximately .77. This is an estimate of the probability that the server is busy.

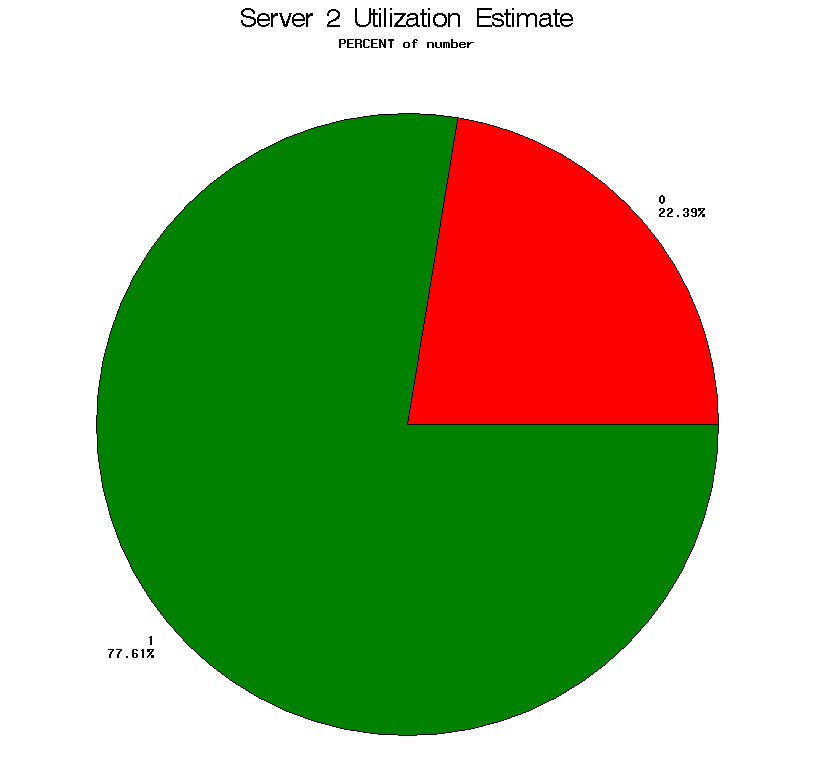

Figure 8.10: Server Utilization

The pie chart in Figure 8.10 shows the percent of time that the server is busy.

Another way to get Server Utilization Statistics

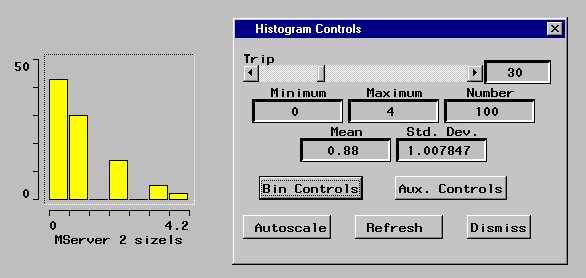

Another way to view server utilization statistics is with a chart component. One component that can be used is the VHistogram. Figure 8.12 shows a VHistrogram and a Histrogram control panel. This histogram had an MServer dropped on it and is monitoring the number of busy servers.


Figure 8.11: Histogram of Server Utilization
