Applying Tests with Varying Subgroup Sample Sizes

Tests for Special Causes

Applying Tests with Varying Subgroup Sample Sizes

See SHWTSC1 in the SAS/QC Sample Library

Nelson (1989, 1994) describes the use of standardization to apply the tests for special causes to data involving varying subgroup samples. This approach applies the tests to the standardized subgroup statistics, setting the control limits at $\pm3$ and the zone boundaries at $\pm1$ and $\pm2$ .For instance, for an $\bar{X}$ chart with subgroup means $\bar{X}_{i}$ and varying subgroup sample sizes n_i, the tests are applied to the standardized values $z_{i} = ( \bar{X}_{i} - \overline{\overline{X}} ) / ( s / \sqrt{ n_{i} } )$ ,where $\overline{\overline{X}}$ estimates the process mean, and s estimates the process standard deviation. You can request this method with the TESTNMETHOD= option,^* as illustrated by the following statements:

   symbol v=dot c=salmon;
   title 'Analysis of Assembly Data';
   proc shewhart history=assembly;
      xrchart offset * sample / mu0         = 20
                                sigma0      = 2.24
                                tests       = 1 to 4
                                testnmethod = standardize
                                testlabel   = space
                                ltests      = 2
                                vaxis       = 16 to 26 by 2
                                split       = '/'
                                cinfill     = ywh
                                cframe      = vligb
                                cconnect    = salmon
                                ctests      = black;
      label offsetx = 'Avg Offset in cm/Range';
   run;

Here the tests are applied to $z_{i} = ( \bar{X}_{i} - 20 ) / ( 2.24 / \sqrt{ n_{i} } )$ .The chart, shown in Figure 48.4, displays the results of the tests on a plot of the unstandardized means.

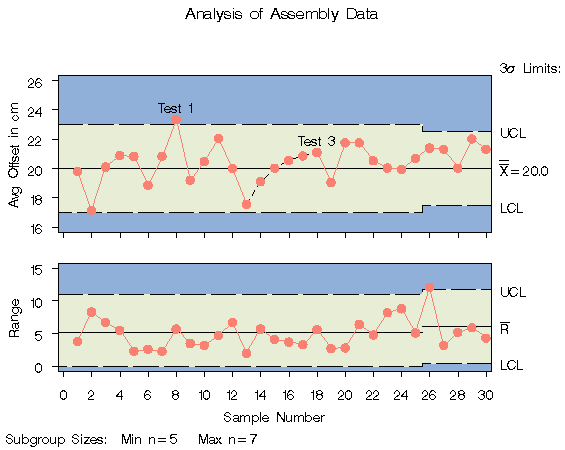

Figure 48.4: The TESTNMETHOD= Option for Varying Subgroup Sizes

The following statements create an equivalent chart that plots the standardized means:

   data assembly;
      set assembly;
      zx = ( offsetx - 20 ) / ( 2.24 / sqrt( offsetn ) );
   run;

   symbol v=dot c=salmon;
   title 'Analysis of Standardized Assembly Data';
   proc shewhart
      history=assembly (rename = (offsetr=zr offsetn=zn));
      xrchart z * sample / mu0         = 0
                           sigma0      = 2.2361 /* sqrt 5 */
                           limitn      = 5
                           alln
                           tests       = 1 to 4
                           testlabel   = space
                           ltests      = 2
                           vaxis       = -4 to 6 by 2
                           split       = '/'
                           cinfill     = ywh
                           cframe      = vligb
                           cconnect    = salmon
                           ctests      = black;
      label zx = 'Std Avg Offset/Range';
   run;

Here, the SIGMA0= value is the square root of the LIMITN= value. The chart is shown in Figure 48.5.

Figure 48.5: Tests with Standardized Means

Note: In situations where the standard deviation is estimated from the data and the subgroup sample sizes vary, you can use the SMETHOD= option to request various estimation methods, including the method of Burr (1969).
