Labeling the Vertical Axis

You can specify a label for the vertical axis of a primary chart by using a LABEL statement to assign the label to a particular variable in the input data set. The type of input data set, the chart statement, and the process specified in the chart statement determine which variable to use in the LABEL statement.

If the input data set is a DATA= data set, assign the label to the process variable (process) specified in the chart statement.

If the input data set is a HISTORY= data set, assign the label to the variable specified in the chart statement whose name begins with the prefix process and ends with the appropriate suffix given by the following list:

Chart Statement Suffix

BOXCHART with CONTROLSTAT=MEAN X

BOXCHART with CONTROLSTAT=MEDIAN M

CCHART U

IRCHART none

MCHART M

MRCHART M

NPCHART P

PCHART P

RCHART R

SCHART S

UCHART U

XCHART X

XRCHART X

XSCHART X

If the prefix process consists of 8 characters, shorten the prefix to its first 4 characters and last 3 characters before adding the suffix.

If the input data set is a TABLE= data set, assign the label to the predefined variable given by the following table:

Chart Statement Variable

BOXCHART with CONTROLSTAT=MEAN _SUBX_

BOXCHART with CONTROLSTAT=MEDIAN _SUBMED_

CCHART _SUBC_

IRCHART _SUBI_

MCHART _SUBMED_

MRCHART _SUBMED_

NPCHART _SUBNP_

PCHART _SUBP_

RCHART _SUBR_

SCHART _SUBS_

UCHART _SUBU_

XCHART _SUBX_

XRCHART _SUBX_

XSCHART _SUBX_

If the chart statement produces primary and secondary charts, as in the case of the XSCHART statement, you can break the label into two parts by including a split character in the label. The part before the split character labels the vertical axis of the primary chart, and the part after the split character labels the vertical axis of the secondary chart. To specify the split character, use the SPLIT= option in the chart statement.

For example, the following statements redisplay the $\bar{X}$ and s charts in Figure 47.30 with specified labels for the horizontal and vertical axes:

   title 'Control Chart for Diameter';

   proc shewhart history=parts;
      xschart diam*sample / split   = '/'
                            cframe  = vibg
                            cconnect= salmon
                            cinfill = ywh;
      label sample = 'Sample Number'
            diamx  = 'Average Diameter/Std Deviation';
   run;

The charts are displayed in Figure 47.31. Because the input data set PARTS is a HISTORY= data set, the vertical axes are labeled by assigning a label to the subgroup mean variable DIAMX (that is, the process DIAM with the suffix X).^* Assigning a label to DIAM would result in an error message since DIAM is interpreted as a prefix rather than a SAS variable.

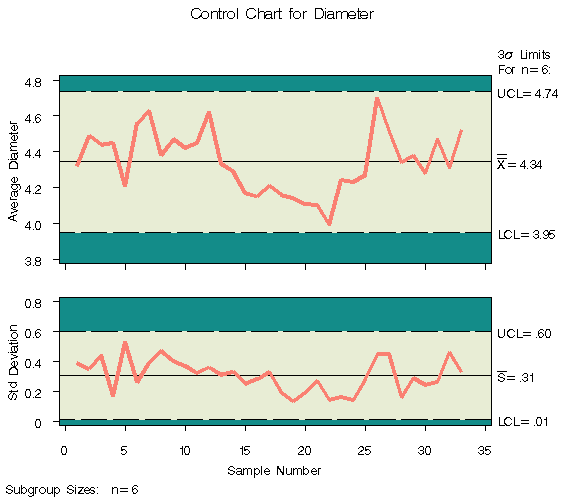

Figure 47.31: Control Charts with Axis Labels Specified

If the input data set were a DATA= data set rather than a HISTORY= data set, you would associate the label with the variable DIAM. If the input data set were a TABLE= data set, you would associate the label with the variable _SUBX_.

For another illustration, see Example 36.2.
