Creating Charts for Means from Raw Data

XCHART Statement

Creating Charts for Means from Raw Data

See SHWXCHR in the SAS/QC Sample Library

Subgroup samples of five parts are taken from the manufacturing process at regular intervals, and the width of a critical gap in each part is measured in millimeters. The following statements create a SAS data set named PARTGAPS, which contains the gap width measurements for 21 samples:

   data partgaps;
      input sample @;
      do i=1 to 5;
         input partgap @;
         output;
         end;
      drop i;
      label partgap='Gap Width'
            sample ='Sample Index';
      datalines;
    1 255 270 268 290 267
    2 260 240 265 262 263
    3 238 236 260 250 256
    4 260 242 281 254 263
    5 268 260 279 289 269
    6 270 249 265 253 263
    7 280 260 256 256 243
    8 229 266 250 243 252
    9 250 270 245 273 262
   10 248 258 247 266 256
   11 280 251 252 270 287
   12 245 253 243 279 245
   13 268 260 289 275 273
   14 264 286 275 271 279
   15 271 257 263 247 247
   16 291 250 273 265 266
   17 228 253 240 260 264
   18 270 260 269 245 276
   19 259 257 246 271 257
   20 252 244 230 266 248
   21 254 251 239 233 263
   ;

A listing of PARTGAPS is shown in Figure 42.1.

The Data Set PARTGAPS

sample	partgap
1	255
1	270
1	268
1	290
1	267
2	260
2	240
2	265
2	262
2	263
3	238
3	236
3	260
3	250
3	256
4	260
4	242
4	281
4	254
4	263
5	268
5	260
5	279
5	289
5	269
6	270
6	249
6	265
6	253
6	263
7	280
7	260
7	256
7	256
7	243
8	229
8	266
8	250
8	243
8	252
9	250
9	270
9	245
9	273
9	262
10	248
10	258
10	247
10	266
10	256
11	280
11	251
11	252
11	270
11	287
12	245
12	253
12	243
12	279
12	245
13	268
13	260
13	289
13	275
13	273
14	264
14	286
14	275
14	271
14	279
15	271
15	257
15	263
15	247
15	247
16	291
16	250
16	273
16	265
16	266
17	228
17	253
17	240
17	260
17	264
18	270
18	260
18	269
18	245
18	276
19	259
19	257
19	246
19	271
19	257
20	252
20	244
20	230
20	266
20	248
21	254
21	251
21	239
21	233
21	263

Figure 42.1: Listing of the Data Set PARTGAPS

The data set PARTGAPS is said to be in "strung-out" form, since each observation contains the sample number and gap width measurement for a single part. The first five observations contain the gap widths for the first sample, the second five observations contain the gap widths for the second sample, and so on. Because the variable SAMPLE classifies the observations into rational subgroups, it is referred to as the subgroup-variable. The variable PARTGAP contains the gap width measurements and is referred to as the process variable (or process for short).

The within-subgroup variability of the gap widths is known to be stable. You can use an $\bar{X}$ chart to determine whether their mean level is in control. The following statements create the $\bar{X}$ chart shown in Figure 42.2:

   title 'Mean Chart for Gap Widths';
   symbol v=dot c=yellow;
   proc shewhart data=partgaps;
      xchart partgap*sample / cframe   = vigb
                              cinfill  = vlib
                              cconnect = yellow
                              coutfill = red;
   run;

This example illustrates the basic form of the XCHART statement. After the keyword XCHART, you specify the process to analyze (in this case, PARTGAP) followed by an asterisk and the subgroup-variable (SAMPLE).

The input data set is specified with the DATA= option in the PROC SHEWHART statement.

For more information on the SYMBOL statement, refer to SAS/GRAPH Software: Reference.

Each point on the $\bar{X}$ chart represents the average (mean) of the measurements for a particular sample. For instance, the mean plotted for the first sample is

[(255 + 270 + 268 + 290 + 267)/5] = 270

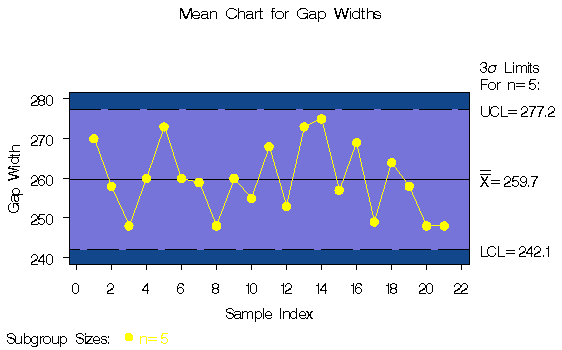

Figure 42.2: $\bar{X}$ Chart for Gap Width Data

Since all of the subgroup means lie within the control limits, it can be concluded that the mean level of the process is in statistical control.

By default, the control limits shown are $3\sigma$ limits estimated from the data; the formulas for the limits are given in Table 42.22. You can also read control limits from an input data set; see "Reading Preestablished Control Limits" .

For computational details, see "Constructing Charts for Means" . For details on reading raw measurements, see "DATA= Data Set" .
