Example 33.3: Creating c Charts for Varying Numbers of Units

CCHART Statement

Example 33.3: Creating c Charts for Varying Numbers of Units

See SHWCEX3 in the SAS/QC Sample Library

In applications where the number of inspection units per subgroup is not equal to one, a u chart is typically used to analyze the number of nonconformities per unit (see Chapter 41, "UCHART Statement"). However, as shown in this example, you can use the CCHART statement to create a c chart for this type of data.

Figure 33.11: lDifference between c Charts and u Charts

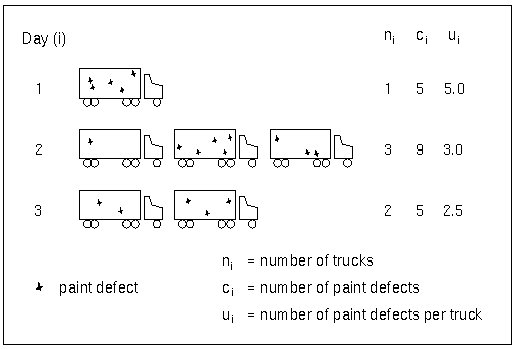

Figure 33.11 illustrates a situation in which varying numbers of trucks are painted each day. Trucks painted on the same day are regarded as subgroups, and each truck is regarded as an inspection unit. The following statements create a SAS data set named TRUCKS4, which contains paint defects for trucks painted on 26 days:

   data trucks4;
      input day defects ntrucks @@;
      label day='Day'
            defects='Number of Paint Defects';
      datalines;
    1   5  1    2   9  3
    3   5  2    4   9  2
    5  24  4    6  10  2
    7  15  3    8  17  3
    9  16  3   10  13  2
   11  28  4   12  18  5
   13   8  2   14   7  2
   15   5  1   16  17  3
   17   2  1   18  17  3
   19  15  4   20  19  5
   21   6  3   22  23  5
   23  27  4   24   6  2
   25  12  2   26  12  3
   ;

The variable DEFECTS provides the defect count (c_i) for the i^th day, and the variable NTRUCKS provides the number of inspection units (n_i). The following statements create a c chart for this data:

   title 'c Chart for Paint Defects on New Trucks';
   symbol v=dot c=red;
   proc shewhart data=trucks4;
      cchart defects*day / subgroupn = ntrucks
                           nolegend
                           cframe    = steel
                           cinfill   = ligr
                           climits   = black
                           cconnect  = red;
   run;

The SUBGROUPN= option specifies the subgroup sample size variable NTRUCKS (in general, the values of this variable need not be integers). Alternatively, you can specify a fixed value with the SUBGROUPN= option. When this option is not specified, it is assumed that n_i=1.

The chart is shown in Output 33.3.1. Note that the central line and the control limits vary with the number of inspection units.

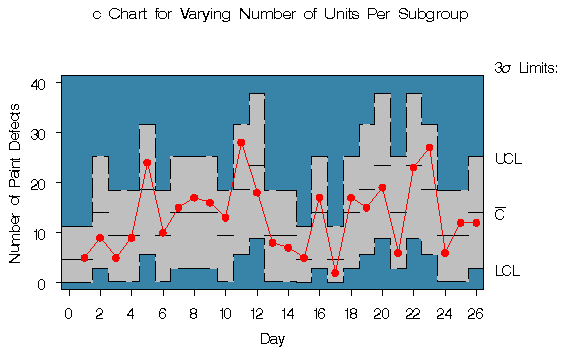

Output 33.3.1: c Chart for Varying Number of Units
