| BOXCHART Statement |
| See SHWBOX4 in the SAS/QC Sample Library |
In this example, a box chart is used to compare the delay times for airline flights during the Christmas holidays with the delay times prior to the holiday period. The following statements create a data set named TIMES with the delay times in minutes for 25 flights each day. When a flight is cancelled, the delay is recorded as a missing value.
data times;
informat day date7. ;
format day date7. ;
input day @ ;
do flight=1 to 25;
input delay @ ;
output;
end;
datalines;
16DEC88 4 12 2 2 18 5 6 21 0 0 0 14 3
. 2 3 5 0 6 19 7 4 9 5 10
17DEC88 1 10 3 3 0 1 5 0 . . 1 5 7
1 7 2 2 16 2 1 3 1 31 5 0
18DEC88 7 8 4 2 3 2 7 6 11 3 2 7 0
1 10 2 3 12 8 6 2 7 2 4 5
19DEC88 15 6 9 0 15 7 1 1 0 2 5 6 5
14 7 20 8 1 14 3 10 0 1 11 7
20DEC88 2 1 0 4 4 6 2 2 1 4 1 11 .
1 0 6 5 5 4 2 2 6 6 4 0
21DEC88 2 6 6 2 7 7 5 2 5 0 9 2 4
2 5 1 4 7 5 6 5 0 4 36 28
22DEC88 3 7 22 1 11 11 39 46 7 33 19 21 1
3 43 23 9 0 17 35 50 0 2 1 0
23DEC88 6 11 8 35 36 19 21 . . 4 6 63 35
3 12 34 9 0 46 0 0 36 3 0 14
24DEC88 13 2 10 4 5 22 21 44 66 13 8 3 4
27 2 12 17 22 19 36 9 72 2 4 4
25DEC88 4 33 35 0 11 11 10 28 34 3 24 6 17
0 8 5 7 19 9 7 21 17 17 2 6
26DEC88 3 8 8 2 7 7 8 2 5 9 2 8 2
10 16 9 5 14 15 1 12 2 2 14 18
;
First, the MEANS procedure is used to count the number of cancelled flights for each day. This information is then added to the data set TIMES.
proc means data=times noprint;
var delay;
by day ;
output out=cancel nmiss=ncancel;
data times;
merge times cancel;
by day;
run;
The following statements create a data set named WEATHER
that contains information about possible causes for delays.
This data set is merged with the data set TIMES.
data weather;
informat day date7. ;
format day date7. ;
length reason $ 16 ;
input day flight reason & ;
datalines;
16DEC88 8 Fog
17DEC88 18 Snow Storm
17DEC88 23 Sleet
21DEC88 24 Rain
21DEC88 25 Rain
22DEC88 7 Mechanical
22DEC88 15 Late Arrival
24DEC88 9 Late Arrival
24DEC88 22 Late Arrival
;
data times;
merge times weather;
by day flight;
run;
Next, control limits are established using
the delays prior to the holiday period.
proc shewhart data=times;
where day <= '21DEC88'D;
boxchart delay * day /
nochart
stddeviations
outlimits=timelim;
run;
The OUTLIMITS= option names a data set (TIMELIM) that
saves the control limits.
The STDDEVIATIONS option specifies that the estimate of
is to be calculated from subgroup standard deviations.
This, in turn, affects the calculation of the control limits.
The NOCHART option suppresses the display of the chart.
The following statements create a box chart for the complete set of data using the control limits in TIMELIM:
symbol1 v=plus c=salmon;
symbol2 v=square c=vigb;
symbol3 v=triangle c=vig;
title 'Box Chart for Airline Delays';
proc shewhart data=times limits=timelim ;
boxchart delay * day = ncancel /
stddeviations
nohlabel
nolegend
symbollegend = legend1
cboxes = dagr
cboxfill = ywh
cframe = vligb
cinfill = ligr;
legend1 label=('Cancellations:')
cborder=black cframe=ligr;
label delay = 'Delay in Minutes';
run;

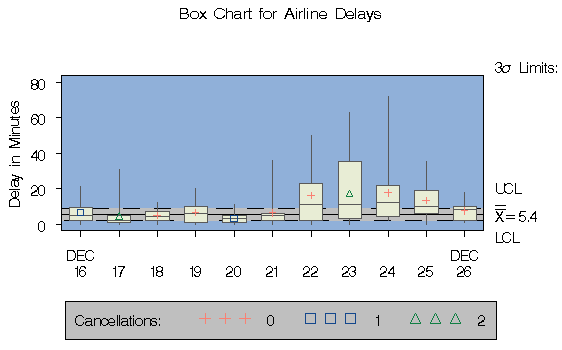

The box chart is shown in Output 32.1.1. The level of the symbol-variable NCANCEL determines the symbol marker for each subgroup mean, and the SYMBOLLEGEND= option controls the appearance of the legend for the symbols. The NOHLABEL option suppresses the label for the horizontal axis, and the NOLEGEND option suppresses the default legend for subgroup sample sizes.
Output 32.1.1: Box Chart for Airline Data
|
|
