The PM Procedure

Gantt View

In the Gantt View, activity schedules are pictorially depicted by horizontal bars. There is one bar for each of the early, resource, actual, and baseline schedules. For the Early Schedule bar, critical activities are marked in different colors than the noncritical activities. Weekends are marked by shaded vertical rectangles running through the chart. Supertasks are differentiated from leaf activities by anchoring vertical cones at the ends of their Early Schedule bars.

The Gantt View is displayed with a rectangular grid that can be turned on or off by selecting "Grid" from the pop-up menu (see Figure 6.11) that is displayed by clicking anywhere in the Gantt View with the right mouse button.


Figure 6.11: Gantt View Pop-up Menu

The pop-up menu in the Gantt View also enables you to toggle the display of the Actual, Resource, or Baseline Schedule bars. Note that these bars can be displayed in the Gantt View only if the project data contain the actual, resource-constrained, or baseline schedules, respectively.

In addition to displaying the activity schedules in an easy-to-view format, the Gantt View in the PM Window can also be used to change the durations of the activities, add or delete precedence constraints, set activity alignment constraints, or set progress information.

You can also change several of the display attributes of the Gantt View by using the Time Axis pop-up menu (see Figure 6.12) to set the scale of the axis, format the time axis labels, set the units of display, and so forth. All of these tasks are described in the following sections.


Figure 6.12: Time Axis Pop-up Menu

Change the Format of the Time Axis

The format of the major axis can be changed by clicking with the right mouse button on the header row of the Gantt View and choosing "Format" for the major axis. For the minor axis, choose "Format Minor." The selections available for the formats are shown in Figure 6.13 and Figure 6.14. In addition to the formats explicitly listed for the major axis, you can specify any valid numeric format by selecting "Other..." and filling in the appropriate fields in the dialog box that is opened as a result.


Figure 6.13: Major Axis Format Pop-up Menu


Figure 6.14: Minor Axis Format Pop-up Menu

Change Increments

Increments in the Gantt View define the number of tick marks on the minor axis per tick mark on the major axis. They can be changed by clicking with the right mouse button on the header area and choosing "Increment" from the pop-up menu. The available selections are shown in Figure 6.15.


Figure 6.15: Increment Pop-up Menu

Change the Scale of the Time Axis

Point the mouse to a tick mark on the major axis in Gantt View. The cursor changes to a double arrow. Drag the tick mark horizontally to change the scale. You can also change the scale using the "Scale" pop-up menu (see Figure 6.16) from the Time Axis pop-up menu.


Figure 6.16: Scale Pop-up Menu

Change Units

The Time Axis Units in the Gantt View can be changed by clicking with the right mouse button on the header bar in the Gantt View and selecting "Units" (see Figure 6.17). The default value of the units used for display is based on the specification of the INTERVAL= parameter in the invocation of the PM procedure.


Figure 6.17: Units Pop-up Menu

Display/Hide Selected Schedules

A display/hide switch for a given schedule can be toggled by clicking with the right mouse button in the main panel of the Gantt View and choosing the desired schedule (see Figure 6.18).


Figure 6.18: Gantt View Pop-up Menu

Modify Activity Alignment Constraints

An activity's Early Schedule bar can be moved using the left mouse button. When the mouse is positioned over the activity bar, the cursor changes to a cross hair type. You can then drag the bar horizontally and move it to a new position. This sets an alignment constraint of type `SGE' for the selected activity with the align date corresponding to the one at the left edge of the bar's new position. Other types of alignment constraints can be entered by editing the Target Date and Target Type columns as described in the "Edit Alignment Constraints" section.

Modify Durations

To change the duration of an activity, point to the right edge of the activity's Early Schedule bar with the left mouse button, and drag to the left or the right depending on whether you want to decrease or increase the duration. You can also edit activity durations in the Table View.

Modify Precedence Information

You can add precedence constraints by depressing the left mouse button at either end of the predecessor activity bar and releasing it at either end of the successor activity bar. The type of constraint (FS, FF, SS, SF) depends on which end of the bars the constraints are drawn from.

You can delete precedence constraints by clicking on the arc with the right mouse button and selecting "Delete" (see Figure 6.19).


Figure 6.19: Arc Pop-up Menu

You can modify the type of the precedence constraint or the lag value associated with the precedence constraint by clicking on the arc with the right mouse button and selecting "Edit Lag." The ensuing dialog box is shown in Figure 6.20. Enter the value of the lag duration in the first field and the type of the lag in the second field. Valid values of lag are Finish-to-Start (FS), Start-to-Start (SS), Start-to-Finish (SF), and Finish-to-Finish (FF).

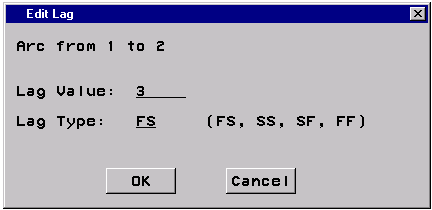

Figure 6.20: Edit Lag Dialog Box

If calendars are defined in the project, the "Edit Lag" dialog includes the lag calendar associated with the selected precedence constraint. You can change the lag calendar by selecting from the list of available calendars that is displayed within the Edit Lag dialog shown in Figure 6.21.

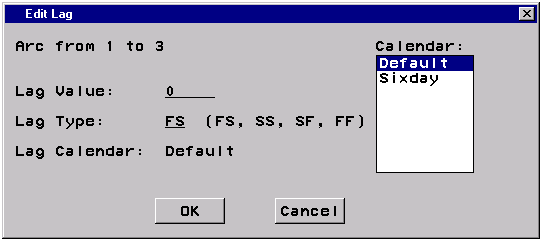

Figure 6.21: Edit Lag Dialog Box (Multiple Calendars)


Modify Progress Information

To modify the Progress using the Gantt View, you must include the Actual Schedule in the view. You can drag the actual schedule bar for the activity to change the amount of progress on the activity; you can also move the activity's actual bar to change the Actual Start of the activity.

When the project contains progress information, a Timenow line is drawn in the Gantt View, indicating the TIMENOW date. You can move the Timenow line by dragging it. When you change the value of TIMENOW, the progress information changes for all the activities. A confirmation window requires you to confirm that you do want to change the progress information for all the activities. (See also the "TIMENOW Macro Variable" section.)

You can also edit the progress columns in the Table View.
