The NETDRAW Procedure

Example 5.11: Zoned Network Diagram

This example illustrates zoned network diagrams. The Widget Manufacturing project is used to illustrate some aspects of this feature. The data set DETAILS contains a variable phase, which identifies the phase of each activity in the project. This data set is merged with the Activity data set from Example 5.1, WIDGET, to produce the data set NETWORK that is input to PROC NETDRAW. The ZONE= option divides the network diagram into horizontal zones based on the project phase. The ZONEPAT option causes the activities in each zone to be drawn using a different pattern. The resulting network diagram is shown in Output 5.11.1.

   data details;
      input task $ 1-12 phase $ 14-26 descrpt $ 28-57;
   datalines;
   Approve Plan Planning      Develop Concept
   Drawings     Engineering   Prepare Drawings
   Anal. Market Marketing     Analyze Potential Markets
   Write Specs  Engineering   Write Specifications
   Prototype    Engineering   Build Prototype
   Mkt. Strat.  Marketing     Develop Marketing Concept
   Materials    Manufacturing Procure Raw Materials
   Facility     Manufacturing Prepare Manufacturing Facility
   Init. Prod.  Manufacturing Initial Production Run
   Evaluate     Testing       Evaluate Product In-House
   Test Market  Testing       Test Product in Sample Market
   Changes      Engineering   Engineering Changes
   Production   Manufacturing Begin Full Scale Production
   Marketing    Marketing     Begin Full Scale Marketing
   ;
   data network;
      merge widget details;
      run;

   pattern1 v=e c=green;
   pattern2 v=e c=red;
   pattern3 v=e c=magenta;
   pattern4 v=e c=blue;
   pattern5 v=e c=cyan;

   title  j=l f=swiss h=1.5 ' Project: Widget Manufacture';
   title2 j=l f=swiss h=1.5 ' Date: December 2, 1991';
   footnote j=r f=swiss 'Zoned Network Diagram ';
   proc netdraw data=network graphics;
      actnet / act=task
               succ=(succ1 succ2 succ3)
               font = swiss
               separatearcs
               zone=phase zonepat
               pcompress htext=2;
      label phase = 'Department';
      run;

Output 5.11.1: Zoned Network Diagram

Next, the project is scheduled with PROC CPM, and PROC NETDRAW is invoked with the ZONE= and TIMESCALE options. The nodes are placed in different zones as dictated by the ZONE variable, phase, and are aligned along the time axis as dictated by the default ALIGN variable, E_START. The MININTERVAL= option produces one tick mark per week for the duration of the project. The LREF= option identifies the linestyle of the reference lines and the dividing lines between zones. The nodes are colored red or green according to whether or not the corresponding activities are critical (PATTERN statements 1 and 2 from the previous invocation of PROC NETDRAW are still valid).

   proc cpm data=network interval=weekday
            out=sched date='2dec91'd;
      activity task;
      succ     succ1 succ2 succ3;
      duration days;
      id phase;
      run;

   footnote j=r f=swiss 'Zone and Timescale ';
   proc netdraw data=sched graphics;
      actnet / act=task succ=(succ1 succ2 succ3)
               pcompress
               font = swiss
               carcs = blue ccritarcs = red
               cref = cyan
               caxis = magenta
               lref = 33
               id = (task)
               nodefid
               nolabel
               boxwidth = 8
               htext=2
               separatearcs
               timescale
               mininterval=week
               autoref
               linear
               zone=phase
               zonespace;
      label phase = 'Department';
      run;

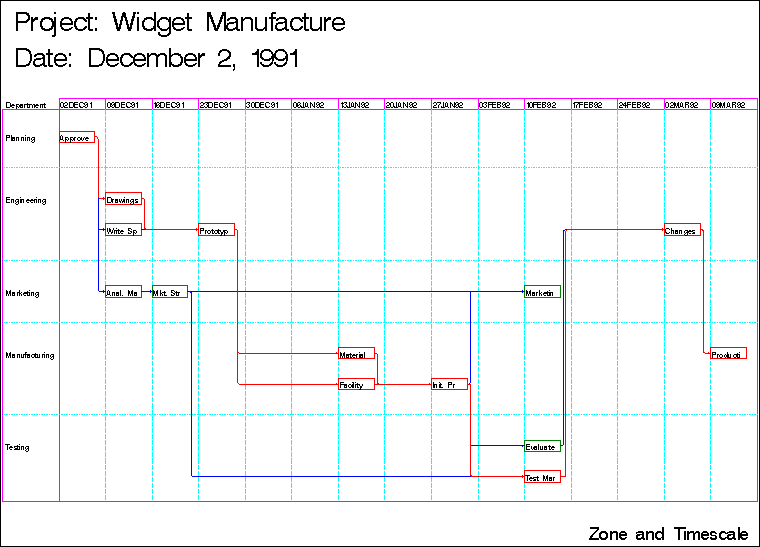

Output 5.11.2: Zoned Network Diagram with Time Axis
