Adjusting Axes and Ticks

Adjusting 2D Axes

You can adjust horizontal and vertical axes in all two-dimensional graphs. For example, Figure 7.7 shows tick labels truncated because the axis does not have space to show them completely. To increase the axis space, point to the axis with the mouse. Note that the cursor changes to a hand when it is positioned over the axis.


Figure 7.7: Adjusting an Axis

Press the mouse button and drag the axis to a new position. When you release the mouse button, the axis moves to its new position.

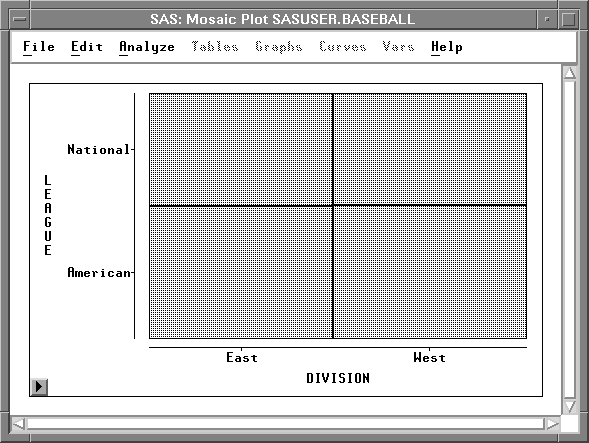

Figure 7.8: Axis at New Position
