Examining Correlations

Creating the Analysis

The GPA data set contains information collected to determine which applicants at a university were likely to succeed in its computer science program. The variable GPA is the grade point average; HSM, HSS, and HSE are average high school grades in mathematics, science, and English; and SATM and SATV are scores on the mathematics and verbal portion of the SAT exam (Moore and McCabe 1989). Follow these steps to create a correlation analysis of the GPA data.


Open the GPA data set.

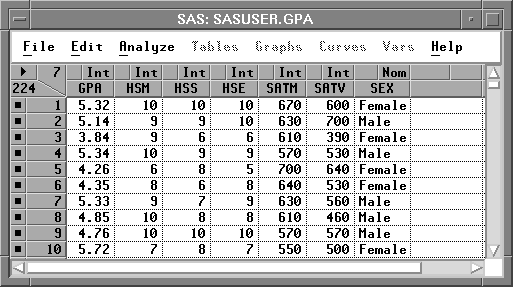

Figure 18.2: GPA Data


Choose Analyze:Multivariate ( Y's ).


[menu]

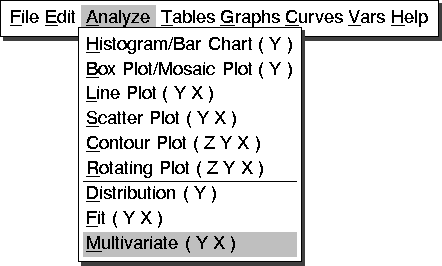

Figure 18.3: Analyze Menu


Select GPA, HSM, HSS, HSE, SATM, and SATV. Then click the Y button to assign these variables the Y role.


Your variables dialog should now appear, as shown in Figure 18.4.

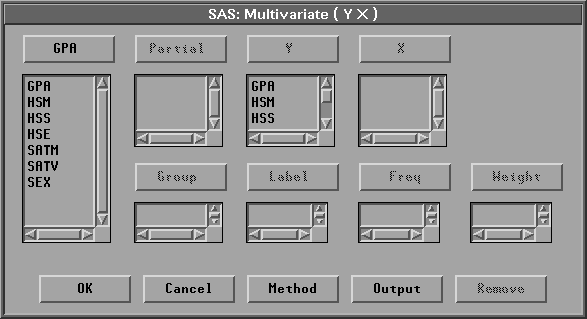

Figure 18.4: Multivariate Variables Dialog


Click OK to create the multivariate window.


By default, the multivariate window contains tables of Univariate Statistics and the Correlation Matrix.

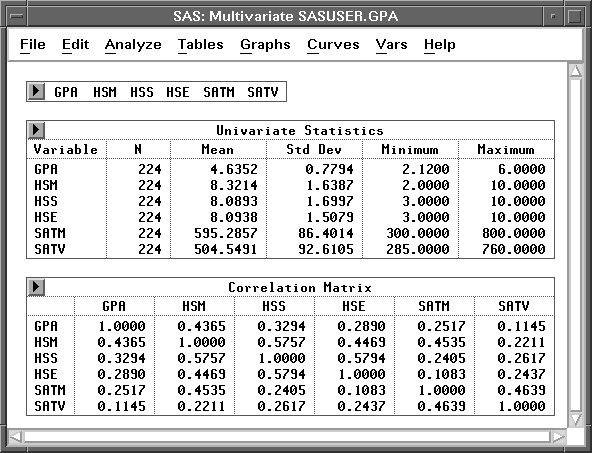

Figure 18.5: Multivariate Window


Correlation Matrix

Confidence Ellipses
