4F30.10 Stirling Engine (Hot Water, Ice)
Concepts
Heat cycles
Overview
The Stirling engine will run when it is placed on a dish of crushed ice or on a mug of hot water. The manufacturer points out that the engine will run if placed on an ice cream cone, but this is messy to clean up.
Details
Equipment
- [1] Stirling engine
- [1] Mug or thermos
- [1] Kettle of water
- [1] Dish of crushed ice
Important Notes
- Handle with care. DO NOT USE dry ice or liquid nitrogen. DO NOT USE anything hotter than hot water.
Script
- Place the Stirling engine on a mug of hot water. The Stirling engine will begin to run.
- Place the Stirling engine on a dish of crushed ice. The Stirling engine will begin to run.
Additional Resources
References
- PIRA 4F30.10
- American Stirling Company
- Crane, H. Richard. "The Stirling Engine - 173 Years old and Running." TPT 28(4), 252-253 (1990)
- Ross, Andy. "Stirling Cycle Engines." Solar Engines 1981 (copy in demos)
- Stirling and Hot Air Engine Ring
Disclaimer
- Don't attempt this at home!
Last revised
- 2023
Technicals
- Original construction: purchased. We use a demonstration Stirling engine model MM-1 manufactured by American Stirling Company.

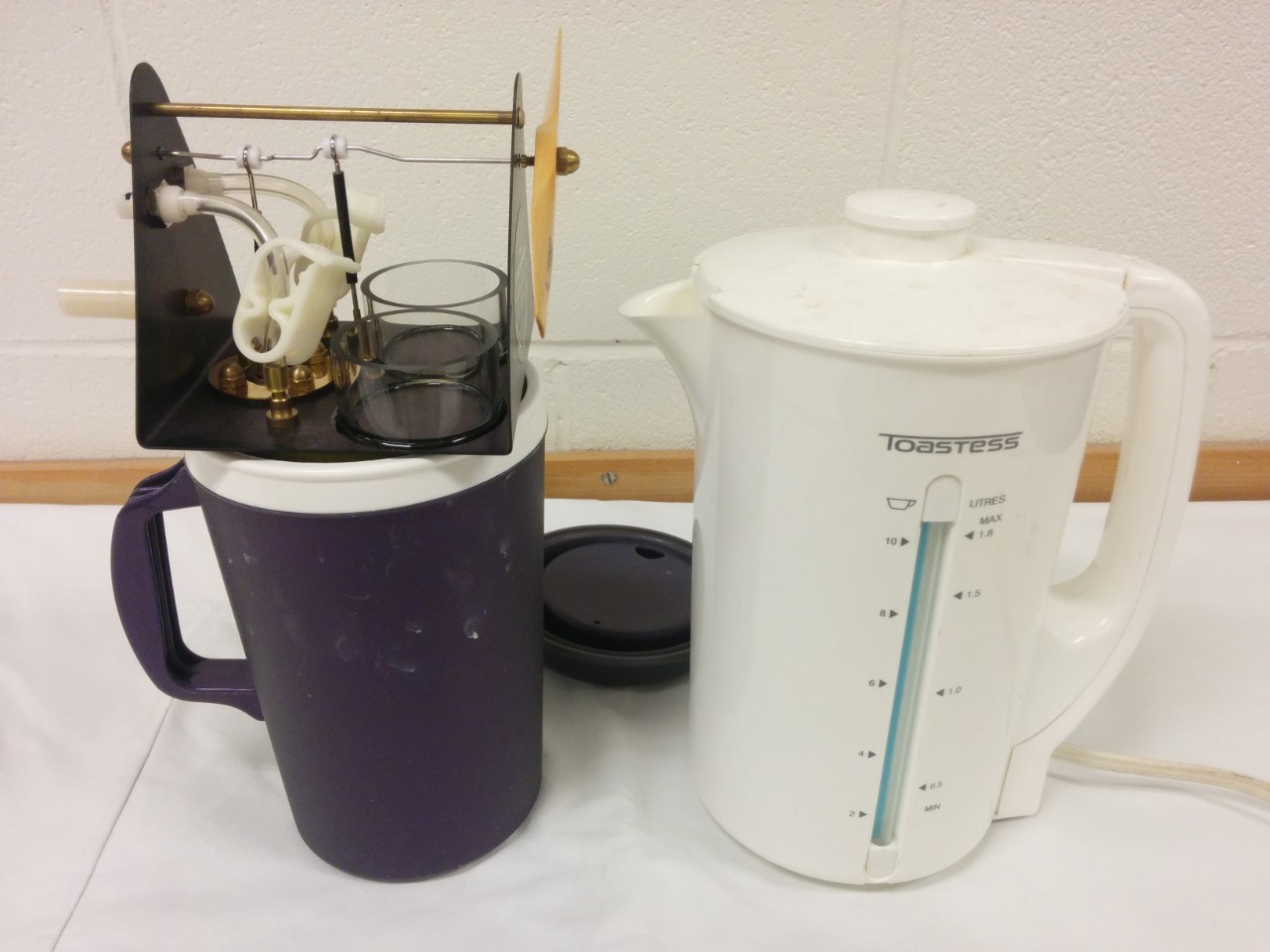

- The pictured engine is our old MM-4 model, which could be filled with helium. It is no longer working.
