6A10.45 Infinity Mirror (Parallel Mirrors)
Concepts
Reflection, flat mirrors, energy
Overview

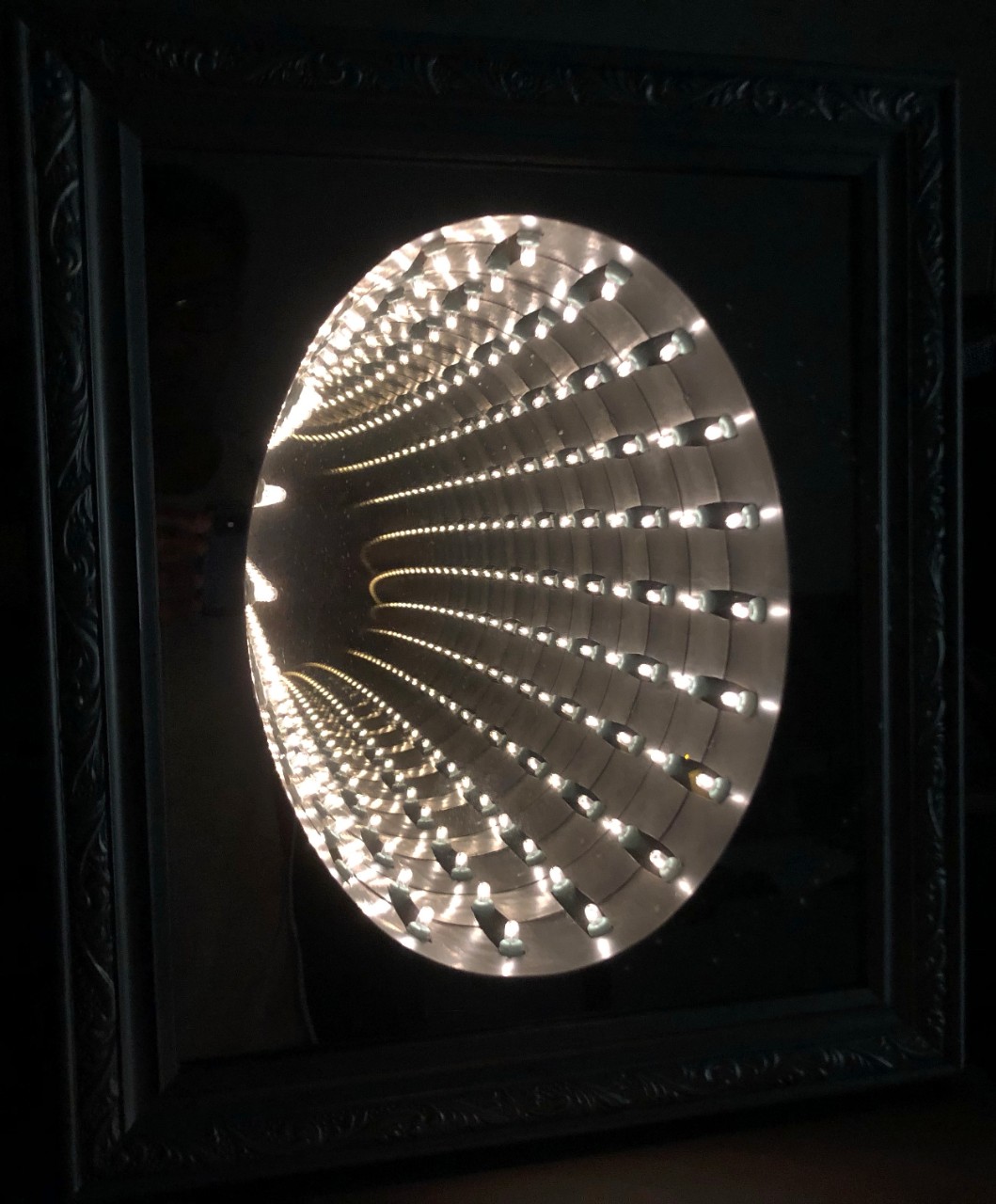

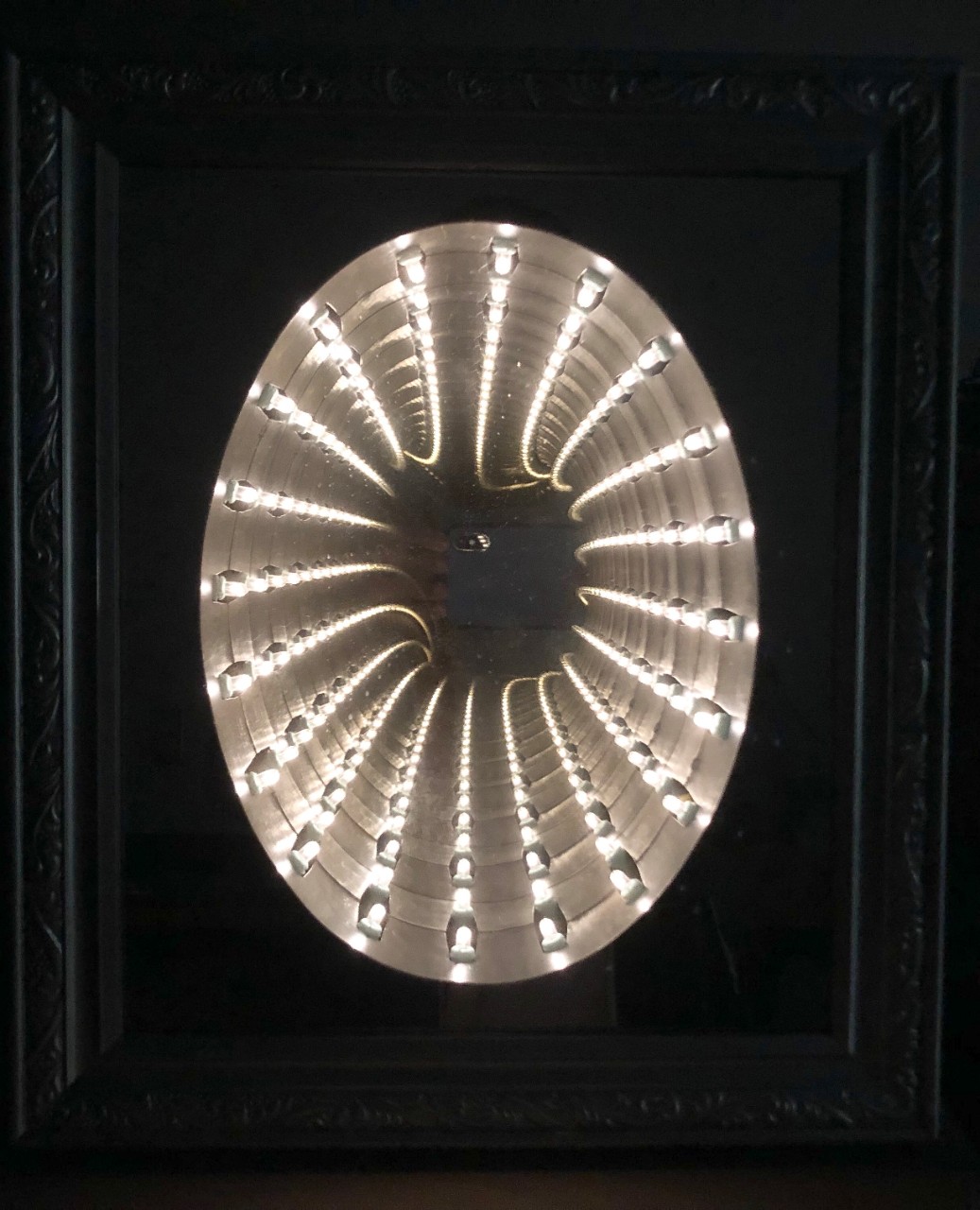

Light from a ring of LEDs reflects repeatedly between two mirrors, making many images of the LEDs and creating the illusion of a deep hole. One of the mirrors is half-silvered so that it can reflect, but also let light out for your eyes to see. The LED images dim with each reflection since some light can escape from one of the mirrors.
Details
Equipment
- [1] Infinity mirror
- [1] Flashlight
Classroom Assembly
- Plug in the infinity mirror.
Script
- Turn off the lights.
- Turn on the infinity mirror.
- Shine the flashlight into the infinity mirror and observe the flashlight reflections.
Additional Resources
References
- PIRA 6A10.45
Disclaimer
- Don't attempt this at home!
Last revised
- 2023
Technicals
- Cell phone LED flashlights work well with this demo.
- This demo was purchased from Nada Scientific.
Related AV
Related demos
- There is a larger, staff-built version of this in the hallway on 9000-level.
If you have any questions about the demos or notes you would like to add to this page, contact Ricky Chu at ricky_chu AT sfu DOT ca.
