Pictures created for the final analysis:

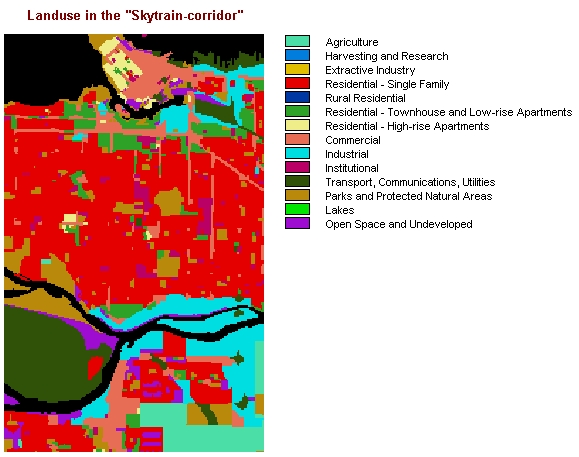

1. Landuse

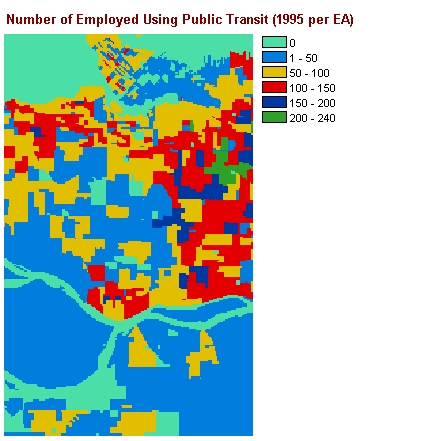

2. Number of Employed using Public Transit

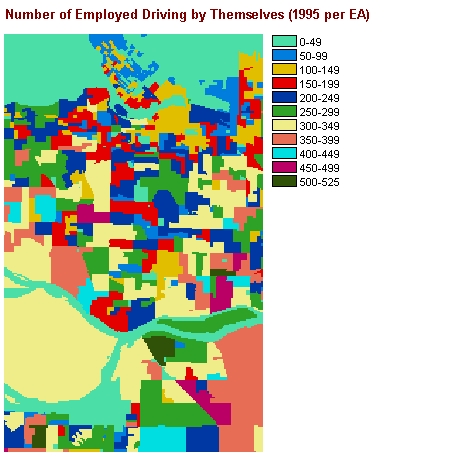

3. Number of Employed driving by Themselves
4. Average Dwelling Value ($)
5. Average Household Income ($)
Results:
1. Costsurface (origin: Richmond Center)
2. Skytrain Line via Arbutus Street
3. Skytrain Line via Granville Street
4. Skytrain Line via Cambie Street Winner!!!
This image shows the possibility of a new Skytrain line through the Arbutus Corridor.
The maximum costs are 184 units.
The route is the most expensive one regarding the criterias I have chosen.

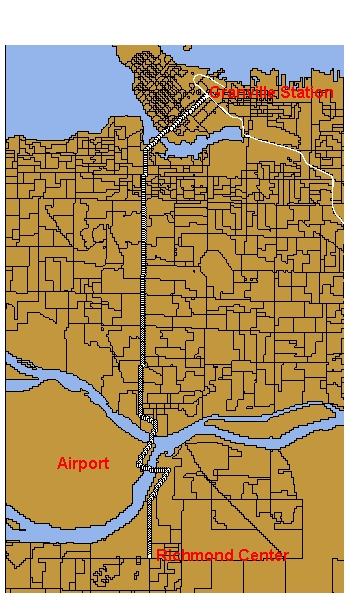

This image shows the possibility of a new Skytrain line through the Granville Corridor.
The maximum costs are 174 units.
The route has medium costs regarding the criterias I have chosen.

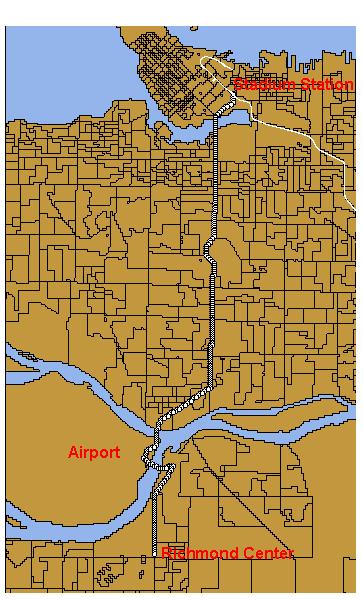

This image shows the possibility of a new Skytrain line through the Cambie Corridor.
The maximum costs are 168 units.
The route is thus the cheapest possibility.
Regarding the criterias I have chosen this route would be most likely to be built.
