Special Fonts in SAS/QC Software

Font Selection

Each of the special fonts matches a particular SAS/GRAPH font, as indicated by the following table:


Special Font Matching SAS/GRAPH Font

QCFONT1SIMPLEX
QCFONT2DUPLEX
QCFONT3SWISSE
QCFONT4SWISS

Choose the special font corresponding to the SAS/GRAPH font in the table that most closely matches the font you are using for general text.

See "Step 1: Preliminary Mean and Standard Deviation Charts" for an example in which QCFONT4 is used to create a title for a control chart.

The following figures illustrate the four special fonts. In each of the figures, the symbols are shown in the special font, and the title and the character codes are shown in the matching SAS/GRAPH font.

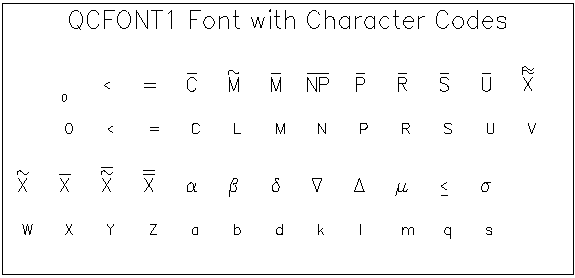

Figure D.1: QCFONT1 and SIMPLEX Fonts

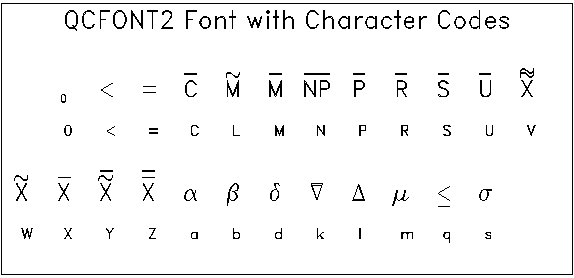

Figure D.2: QCFONT2 and DUPLEX Fonts

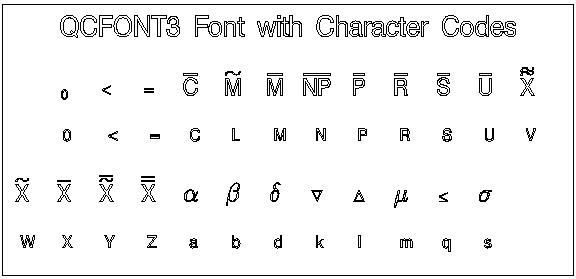

Figure D.3: QCFONT3 and SWISSE Fonts


Figure D.4: QCFONT4 and SWISS Fonts
