Details of the ISHIKAWA Environment

Swapping Arrows

Use the swap operation to interchange two arrows in a single operation instead of using two move operations. Swapping has all the flexibility of the move operation; you can swap arrows that have different parents, different levels, or arrows from different diagrams.

Like moving, the results depend upon whether you select the arrow from the arrow head or the arrow tail. When you select the arrow head, the arrow and all its descendants are moved. When you select the arrow tail, only the labels of the selected arrows are interchanged.

Swapping is a two step operation.

To cancel a swap after you have selected the first arrow, click in a background area of the diagram.

Example

To swap the branch labeled Pre-Flight Service (and all its descendants) with the branch labeled Post-Flight Service in the following diagram, move your cursor over the arrow head of the Pre-Flight Service branch and activate the popup menu using the right mouse button. Select  {Swap}
to begin the operation.

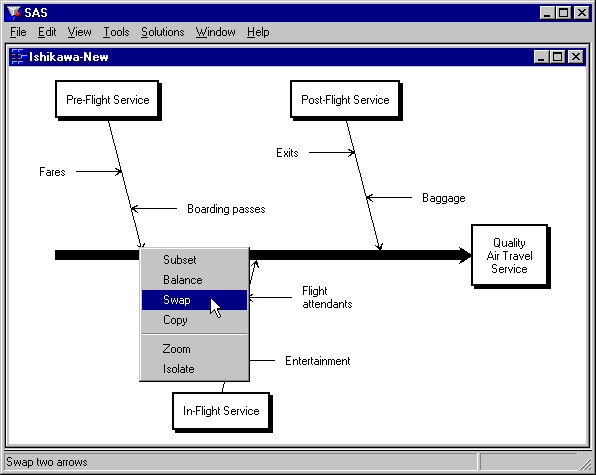

Figure 18.21: Swapping Two Arrows

To complete the swap, select the arrow head of the Post-Flight Service branch.

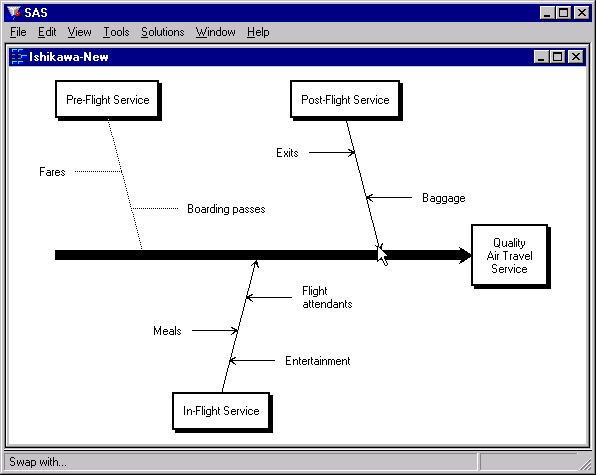

Figure 18.22: Swapping Two Arrows (continued)

The completed diagram illustrates how the swap operation simplifies interchanging two arrows.




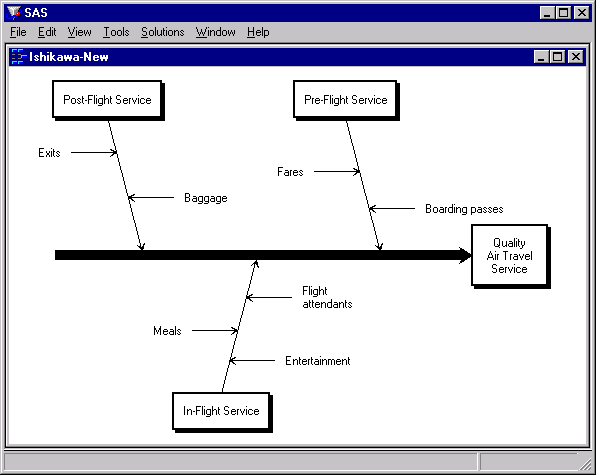

Figure 18.23: Completing a Swap

An alternative to swapping the arrows is to move them. However, moving arrows in this situation requires more steps and tends to be more cumbersome than swapping.
