Details of the ISHIKAWA Environment

Managing Complexity

A major advantage of the ISHIKAWA environment is that you can quickly organize a highly complex diagram. However, not everyone may be interested in seeing all the details -at least initially.

To increase the level of detail by one level, do the following:

Each time you select  {\gt\space Detail}
from the background popup menu, the detail increases by one level.

To reverse the process and decrease the level of detail, select  {\lt\space Detail}
from the popup menu, or press the  {\lt}
key.

Example

You are making an online presentation about factors that influence the quality of air travel service. The following diagram presents too many details to be a good starting point for your audience:




Figure 18.34: Highly Detailed Ishikawa Diagram

A better way to begin is by displaying only the trunk and branches.

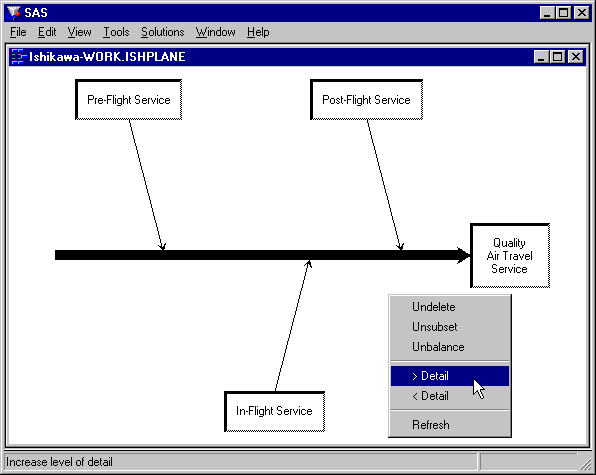

Figure 18.35: Branch-Level Diagram

Then, at the next stage of your presentation, dynamically foliate the branches with stems, as follows:

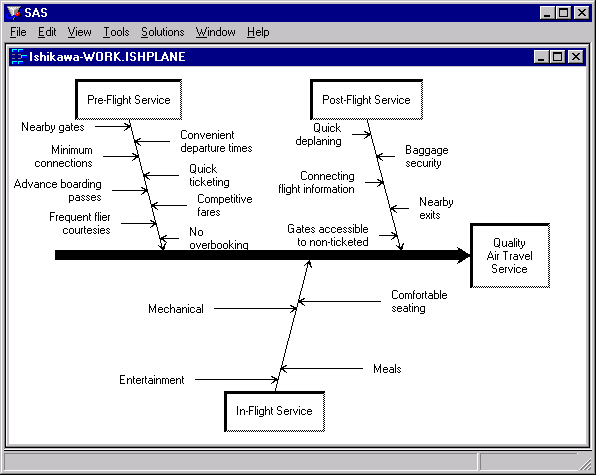

Figure 18.36: Increasing the Level of Detail

The amount of detail is increased by one level.




Figure 18.37: Increasing the Level of Detail
