Color Options

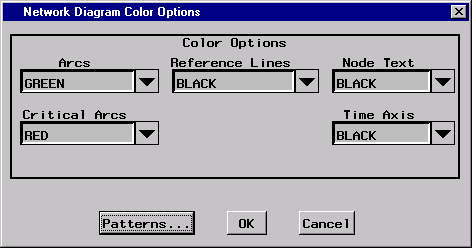

This window is used to set options that control the color of various features of
the network diagram. Note that these options are ignored unless the report
Resolution option is set for graphics-quality output.
The Arcs combo box can be used to specify the color to use for drawing the
connecting lines between the nodes in the network diagram.
The Critical Arcs combo box can be used to specify the color to use for drawing the
arcs connecting critical activities in the network diagram.
The Reference Lines combo box can be used to specify the color to use for drawing
reference lines on the network diagram. Reference lines are vertical lines drawn at
specific positions along the time axis to indicate time intervals. Note that this
option is used only when a time axis is drawn along the top of the network
diagram.
The Node Text combo box can be used to specify the color to use for displaying text
that appears within nodes on the network diagram. Note that this color specification
does not apply to titles, footnotes, or any annotated text.
The Time Axis combo box can be used to specify the color to use for displaying
the time axis along the top of the network diagram. The same color is also used
for the frame around the chart area (where the activity bars are drawn). Note
that this option is used only when a time axis is drawn along the top of the
network diagram.
