Saving Graphics Catalogs

To save SAS/GRAPH catalogs from SAS/INSIGHT software, follow these steps.

Select any graphs or tables you want to save.

If no graphs or tables are selected, you will save all objects visible in the active window. To save all objects in the window, visible or not, choose Edit:Windows:Select All. Choosing this menu selects all graphs and tables in the active window.

Choose File:Save:Graphics Catalog.

This calls up the save graphics catalog dialog.

[menu]

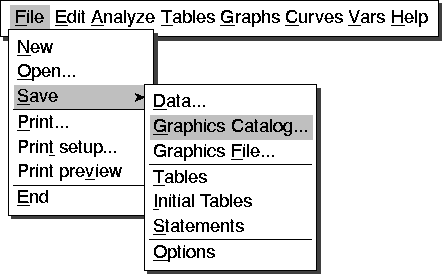

Figure 27.7: File:Save Menu

Click the Graph or Image radio button to set your preference.

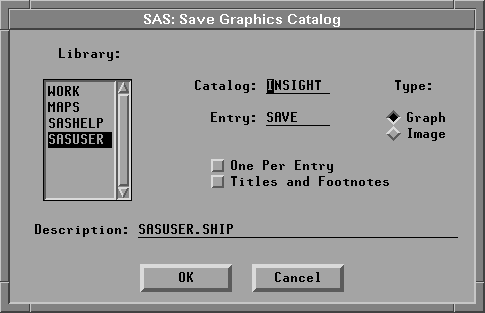

Figure 27.8: Graphics Catalog Dialog

You can also specify catalog, entry, and description for your graphics output.

Set the One Per Entry option if you want to store each graph and table as a separate catalog entry. Entry names are derived from the name of the graph or table. Set the Titles and Footnotes option if you want to use SAS titles and footnotes. If you set both One Per Entry and Titles and Footnotes options, and if your window contains group variables, an additional title is generated to show the group. The group title is similar to the BY-group title in SAS/GRAPH output.

Click OK to save the catalog.
