Producing a Pie Chart

This section shows you how to generate a pie chart that shows how many houses are in each style.

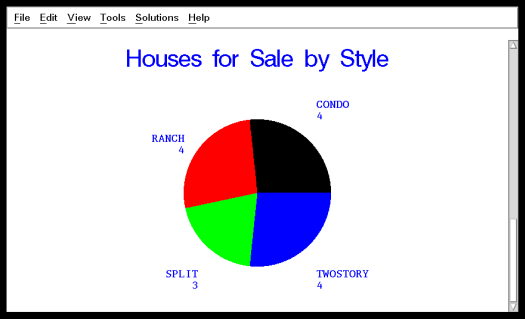

Houses for Sale by Style Pie Chart

Instructions

1. To produce a pie chart graph like the one in the previous display, follow this selection path:

   Tasks

   Graphics

   Pie Chart...

   The Pie Chart window appears.

   Pie Chart Window




2. If the active table is SASUSER.HOUSES, continue to the next step. Otherwise, select Table, and then select the SASUSER.HOUSES table. For more information on selecting tables, see Selecting a Table.

3. If there is an active Subset Data selection (indicated with BY, WHERE, or ROWS next to the Subset data button), clear the selection. For more information, see Clearing a Subset Data Selection.

4. If other task selections exist (for example, a column name is listed for Chart column), follow this selection path to clear these selections:

   File

   New

5. To indicate that you want the pie slices to represent the numbers of each style of house in the HOUSES table, select Chart column, and then select the STYLE column. For more information, see Selecting a Column.

Adding Titles

You can customize the graph by adding titles and footnotes, changing the page dimensions, and selecting headings. Refer to Adding Titles for instructions on adding titles to the graph. Add the title Houses for Sale by Style as Title 1 for this graph.

Because the same set of titles and footnotes is used for all SAS/ASSIST tasks, the titles and footnotes most recently used in your SAS/ASSIST session are used unless you change or reset them in the Titles and Footnotes windows.

Running the Graph

After you have finished setting up the graph, run it by following this selection path:

Run

Submit

The graph appears in the Graph window.

Houses for Sale by Style Pie Chart

Printing the Graph

For most operating environments, you can print your graph by following this selection path from the Graph window:

File

Print...

However, some operating environments and hardware may require some set-up prior to printing graphics. If you have trouble printing graphics, see the SAS companion for your operating environment or contact the SAS Support Consultant at your site for further instructions.

Exiting This Task

When you are finished viewing or printing your graph, return to the Pie Chart window by using one of the following methods, depending on your operating environment:

• Use the PREVWIND function key.

• Click on the SAS/ASSIST window.

To return to the WorkPlace menu or move on to another task, follow the directions in Exiting a Task.
