SAS/EIS Software: Administrator's Guide

Establishing the Access Control Environment

Preliminary Requirements

You activate access control for EIS applications by completing the following steps:

Make sure that you have write access to the SASHELP.AC and SASHELP.MB catalogs.
Select an access control key, which is a password used to protect and encrypt your access control files and to protect access to the Access Control Setup window.
Select a location for your access control files.
- Your access control files contain information about users and groups and hold the access control lists that define access to data, applications, and functions for each group of users.
- The access control files should be stored in a location that is available to all users of your applications at all times. Users who do not have access to the access control files will not be allowed to start any EIS application.
- You can store your access control files on any network location that can be locally mapped from your users' workstations-for example, a directory on a Novell network drive for PC users or an NFS-mounted volume for UNIX users. You can also choose any location that is accessible through a SAS/CONNECT server or a SAS/SHARE server that supports Remote Library Services (RLS).

Initializing the Environment

The following steps describe how to set up the access control environment in your SAS/EIS session:

Invoke SAS/EIS software by selecting from the menu bar in a SAS window

Solutions EIS/OLAP Application Builder
Open the Access Control Setup window by selecting Setup from the EIS Main Menu and Access Control from the Setup window's Multidimensional Applications group.

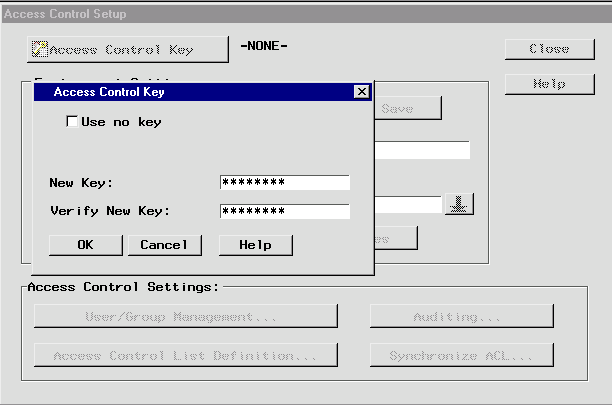

In the Access Control Setup window, select [Access Control Key]. When the Access Control Key window appears, type the default access control key, SASADMIN, in the New Key field and in the Verify New Key field. Select [OK].

You can choose not to use any key on your access control files by selecting Use no key in the Access Control Key window.
Note: The access control key is stored in the SASHELP.MB catalog. Make sure that this catalog or a copy of this catalog is used for all applications that use SAS/EIS access control.
Now, exit your SAS/EIS session so that the appropriate catalogs can be updated with this information.
Start SAS/EIS software again. Open the Access Control Setup window by selecting Setup from the EIS Main Menu and Access Control from the Setup window's Multidimensional Applications group. When prompted by the Access Control Key window, type the access control key that you selected previously and select [OK].

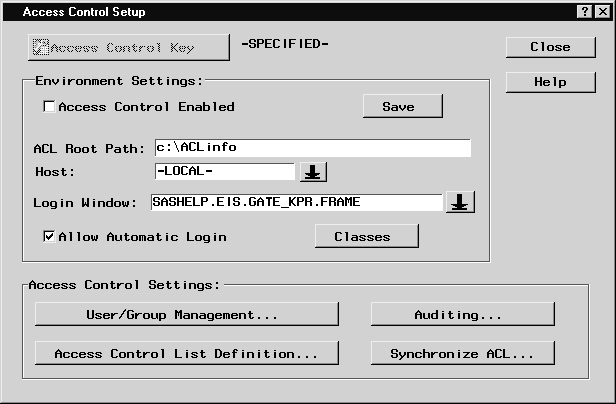

In the Access Control Setup window, the Environment Settings region is now active. Type the path and, optionally, the name of a server in the ACL Root Path and the Host fields, and press the Enter key.
Select the Access Control Enabled check box.
Select [Save]. The system verifies that the ACL Root Path and Host values are valid and creates the access control files in the directory that you specified. The userid, ADMIN, is created automatically, with ADMIN as the initial password.
Now, exit your SAS/EIS session and all active SAS/EIS applications. The next time that you start a SAS/EIS session, you will be prompted to specify a valid userid and password in the Login window. In the Userid field, type ADMIN; in the Password field, type ADMIN.

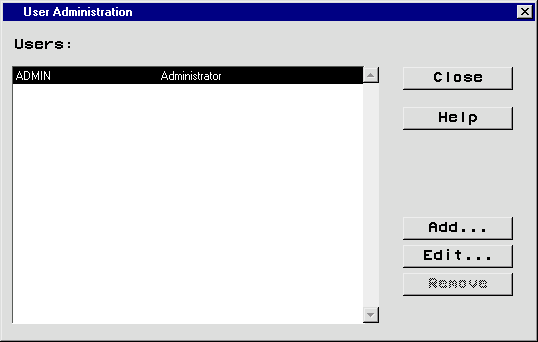

Open the Access Control Setup window, and select [User/Group Management] and then [User Management] to open the User Administration window.
Notice that ADMIN is the only user at this point and that it is pre-selected. Select [Edit], and type a password. Select [OK] and [Close] to return to the Access Control Setup window. The next time you log on, use the new password.
Note: The access control setup information is physically stored in the SASHELP.AC catalog. For all applications that use SAS/EIS access control, make sure that this catalog, or a copy of it, is being used.

Setting Up Users And Groups

Access control definitions always define access to data, applications, or functions for groups of users. In other words, an access control group is a collection of users with identical access rights.

Before you begin

Compile a list of the users of your application. You might use IDs from software access control systems or security systems that already exist in your organization. Also, determine the groups of users with different access rights.
Activate access control.

Then, follow these steps:

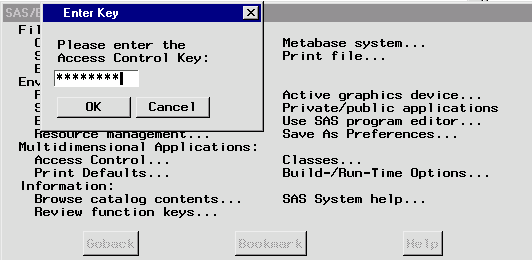

Open the Access Control Setup window by selecting Setup from the EIS Main Menu and Access Control from the Setup window's Multidimensional Applications group. In the Enter Key window, type the access control key and select [OK].

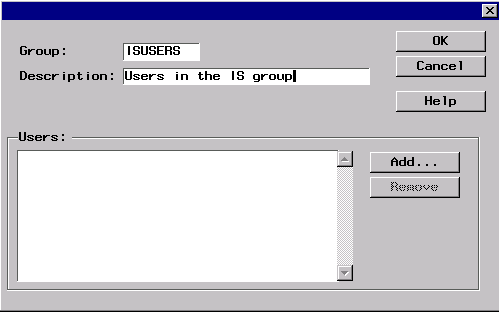

Select User/Group Management and Group Management to open the Group Administration window. Note that the SYSTEM and USERS groups have been created for you already. To create additional groups, select [Add] to open the Group Administration (2) window, type in the name and description of a group, and select [OK] to return to the User Administration window. The name of the group you added appears in the list.

Note: You do not need to add users to your groups now. You can assign a group to a user as you define the user's ID.
After you have defined the groups that you need, close the Group Administration window.
Note: You can now define IDs for the users of your application or you can do this at a later time.

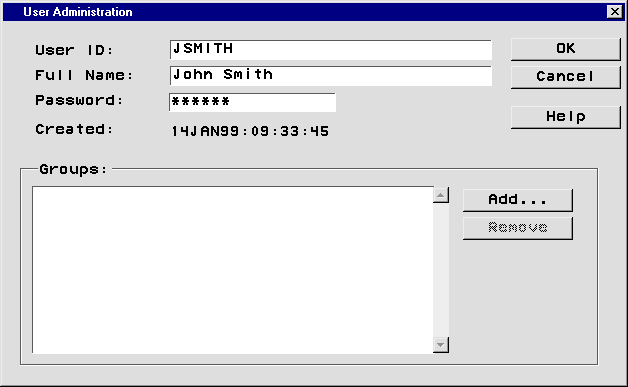

To define user IDs, select User/Group Management and then User Management to open the User Administration window, which displays a list of users. To add a user, select [Add] to open the User Administration (2) window. Next, type an ID and a password, and select one or more groups for the user. Optionally, you can add a full name for the user. Follow these steps for each user you add. When you have completed all additions, select [OK] and [Close] to return to the Access Control Setup window.
Note: For additional information, see Assigning Multiple Groups to a User.

You have now defined your initial User/Group structure. You can repeat these steps at any time to change descriptions, to add or remove users or groups, to change group assignments, or to reset passwords.
