SAS/ACCESS Software for PC File Formats: Reference

Understanding WKn Essentials

This chapter introduces SAS System users to WKn files. It focuses on the terms and concepts that help you use the SAS/ACCESS interface and includes descriptions of

WK1, WK3, and WK4 files contain data in the form of Lotus 1-2-3 spreadsheets. The SAS/ACCESS interface supports Releases 4 and 5 of the Lotus 1-2-3 WK4 file format. Unless otherwise noted, WK1, WK3, and WK4 files are referred to collectively throughout this report as WKn files, where n stands for 1, 3, or 4.

Note:   The SAS/ACCESS interface does not support the .123 format for files from Lotus SmartSuite 97 software.  [cautionend]


WKn Files

Various software products, such as the Lotus 1-2-3 spreadsheet and database system, enable you to use spreadsheet or database files to enter, organize, and perform calculations on data. Spreadsheets are most often used for general ledgers, income statements, and other types of financial record keeping. Database files also enable you to organize related information, such as, the data in an accounts-receivable journal.

In both spreadsheets and database files, the data are organized according to certain relationships among data items. These relationships are expressed in a tabular form, in columns and rows. Each column represents one category of data, and each row can hold one data value for each column.

A Lotus 1-2-3 worksheet is an electronic spreadsheet consisting of a grid of 256 columns and 8,192 rows. The intersection of a column and a row is called a cell. Columns and Rows of Data in a WKn File illustrates a portion of a standard 1-2-3 worksheet.

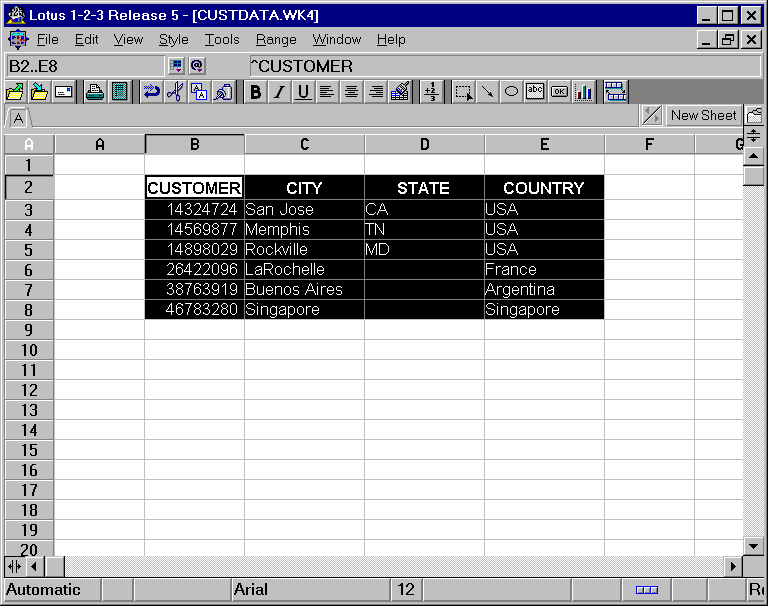

Columns and Rows of Data in a WKn File

[IMAGE]

Column letters for each column appear above the worksheet. Columns are lettered A through IV (A to Z, AA to AZ, BA to BZ, and so on to IV). Row numbers for each row appear to the left of the worksheet. Rows are numbered 1 to 8,192. For .WK1 files, only one worksheet (worksheet A) is allowed per file. For .WK3 and .WK4 files, up to 256 worksheets (worksheets A-IV) are allowed. The SAS/ACCESS interface to WKn files uses only one worsheet, however, and defaults to worksheet A.

A range is a subset of cells in a worksheet. A range is identified by its address, which begins with the name of the top left cell and ends with the name of the bottom right cell separated by two periods. For example, the range B3..D6 is the range address for a rectangular block of 12 cells whose top left cell is B3 and whose bottom right cell is D6 (as shaded in the figure).

You can give a name to a range and use the name in commands and formulas instead of the range address in Lotus 1-2-3. A range name can be up to 15 characters long and should not contain any spaces. For example, if the range B3..D6 is named GRADE_TABLE, then the formula @AVG(GRADE_TABLE) has the same value as @AVG(B3..D6) and identifies the data in the range.

For more information on ranges and their naming conventions, see the documentation that accompanies your Lotus 1-2-3 software.

WKn File Naming Conventions

Filenames must also follow operating environment specific conventions, so check the documentation that comes with your Lotus 1-2-3 product or other software products for further information. The following conventions apply to WKn filenames:


WKn Data Types

Lotus 1-2-3 software has two data types: character and numeric. Lotus 1-2-3 character data may be entered as labels or formula strings; Lotus 1-2-3 numeric data may be entered as numbers or formulas.

Character data are generally considered text and can include dates and numbers if prefixes are used to indicate character data and to align the data in the cell. For example, in Lotus 1-2-3, the value "110 Maple Street uses the double quote prefix and aligns the label on the right side of the cell.

Numeric data can include numbers (0 through 9), formulas, and cell entries that begin with one of the following symbols: +, $, @, -, or #.

Numeric data also can include date and time values. In Lotus 1-2-3 software, a date value is the integer portion of a number that can range from 01 January 1900 to 31 December 2099, that is, 1 to 73050. A Lotus 1-2-3 software time value is the decimal portion of a number that represents time as a proportion of a day. For example, 0.0 is midnight, 0.5 is noon, and 0.999988 is 23:59:59 (on a 24-hour clock). While a number can have both a date and a time portion, the formats in Lotus 1-2-3 display a number only in a date format or a time format. For information on how the SAS/ACCESS interface handles date and time values and formats, see How the SAS System Handles Date and Time Values.

When you create an access descriptor, the interface software uses the column types and formats in the .WK n file to determine the corresponding SAS variable formats. The SAS System generates its default formats based on the values that you specify for the SCANTYPE, SKIPROWS, and GETNAMES statements. You can change the formats generated by the software interface. For more information, see How the SAS/ACCESS Interface to WKn Files Works.

When you browse a view descriptor, any data value that does not match the column type (character or numeric) specified in the descriptor is treated as a missing value. This is the default action. However, you can use the MIXED=YES statement to convert numeric data values in a character column to their character representation when you create an access descriptor.

You can also set the SS_MIXED environment variable to YES in your SAS configuration file so that both numeric and character data are displayed as SAS character data. Add this line to your SAS configuration file:

-SET SS_MIXED YES

See Setting Environment Variables for more information on environment variables. For more information on changing the column type, refer to the sections on WK-specific procedure statements later in this chapter.


How the SAS System Handles Date and Time Values

The conversion of date and time values between SAS data sets and Lotus 1-2-3 spreadsheets is transparent to users. However, you are encouraged to understand the differences between them.

Lotus 1-2-3 date and time values and formats are described in WKn Data Types.

Datetime Conversions in the ACCESS Procedure

As described earlier in this chapter, a Lotus date value is the integer portion of a number that represents the number of days between January 1, 1900 and a specified date. A Lotus time value is a decimal portion of a number that represents time as a portion of the day. For example, 0.0 is 12:00:00 a.m. and 0.9999884 is 11:59:59 p.m. While a number can have both a date and a time portion, the formats in Lotus 1-2-3 display a number only in a date format or in a time format. For example, for 1:00 p.m., March 12, 1994, the Lotus 1-2-3 date value is 34405, the time value is 0.5416667, and the datetime value is 34405.5416667.

The SAS System handles date and time values differently than Lotus. A SAS date value is an integer that represents the number of days between January 1, 1960 and a specified date. A SAS time value is an integer that represents the number of seconds since midnight of the current day. When a date and a time are both present, the SAS System stores the value as the number of seconds since midnight, January 1, 1960. For example, for 1:00 p.m., March 12, 1994, the SAS date value is 12489, and the SAS time value is 46800. Therefore, the SAS datetime value is 1079096400. (footnote 1)

To convert a Lotus 1-2-3 datetime format to a SAS datetime format, you need a SAS datetime format in the view descriptor. For example, changing the default SAS numeric format (15.2) to a SAS date format in the descriptor causes the Lotus 1-2-3 date value (based on January 1, 1900) to be converted to an equivalent SAS date value (based on January 1, 1960). In other words, the Lotus 1-2-3 numeric value for January 1, 1960 (which is 21916) is converted to the equivalent SAS representation of January 1, 1960 (which is 0) only if a SAS datetime format is assigned in the descriptor for that column. Otherwise, the Lotus 1-2-3 value of 21916 is treated as a SAS numeric value of 21916.

The table below shows how the SAS System uses a Lotus 1-2-3 internal datetime value to convert to a SAS internal datetime value.

Value-to-Format Conversions
For a SAS format SAS System uses
date if the Lotus datetime value is less than 60: integer portion of the Lotus 1-2-3 datetime value - 21915

if the Lotus datetime value is greater than 60: integer portion of the Lotus 1-2-3 datetime value - 21916
time decimal portion of the Lotus 1-2-3 datetime value * 86400
date-and-time if the Lotus datetime value is less than 60: (integer and decimal portion of the Lotus 1-2-3 datetime value - 21915) * 86400

if the Lotus datetime value is greater than 60: (integer and decimal portion of the Lotus 1-2-3 datetime value - 21916) * 86400


Datetime Conversions in the DBLOAD Procedure

If a SAS variable is specified with a date, time, or datetime format in the FORMAT statement, the interface-view engine converts that SAS datetime format into the equivalent Lotus 1-2-3 datetime format when the new WKn file is created.

However, if a SAS datetime format is not specified in the input SAS data set, you have to assign a format by using a PROC DBLOAD FORMAT statement. Doing so assigns a Lotus 1-2-3 datetime format to the SAS variable when the variable is loaded into a WKn file. If you do not assign a SAS datetime format, the SAS numeric-datetime value is written to the WKn file. Because SAS dates are based on January 1, 1960, and Lotus 1-2-3 dates are based on January 1, 1900, the datetime value in the WKn file will be inaccurate.

To maintain a SAS variable format in the input data set, yet change it only while the DBLOAD procedure is in progress, use the FORMAT statement in PROC DBLOAD. This statement enables you to assign a temporary format to a SAS variable for the duration of the procedure without affecting the input SAS data set.

For example, if the SAS format for the BIRTHDAT variable in the MYDATA.SASEMPS access descriptor is left at the default 15.2 format, you can specify the FORMAT statement in the PROC DBLOAD statement. This specification changes the variable's format to DATE7. while you are creating and loading the WKn file. When you load the WKn file, the DATE7. format becomes an equivalent Lotus column format, DD-MON-YY. When the DBLOAD procedure has completed, the SAS format for the BIRTHDAT variable returns to the 15.2 format.

You can specify the FORMAT statement when you invoke the DBLOAD procedure to assign a temporary format to the variables in your input SAS data set. For more information, see the description of the FORMAT statement in DBLOAD Procedure Statements for WKn Files.


ACCESS Procedure Data Conversions

Use PROC ACCESS to define descriptors that identify spreadsheet data and the conversions necessary to use the data in SAS programs. The Lotus label data type is formatted as a SAS character type, and the Lotus 1-2-3 number data type is formatted as a SAS numeric type.

Fonts, attributes, and colors in the WKn files are not read into the SAS data sets. However, the ACCESS procedure supports most of the WKn number formats and automatically converts them to the corresponding SAS formats. Any WKn data strings longer than 200 characters are truncated while being converted into SAS data sets, and any SAS data file created from WKn files can only contain up to 256 variables and 8,192 observations.

Converting SAS System Variable Formats to WKn File Data shows the default SAS System variable formats that the ACCESS procedure assigns to each type of WKn file data. WKn file numeric data include date and time values. See How the SAS System Handles Date and Time Values for more information.

If WKn file data fall outside of the valid SAS data ranges, you receive an error message in the SAS log when you try to access the data.

The SAS/ACCESS interface does not fully support the Lotus 1-2-3 hidden and text formats. WKn data in hidden format are displayed in SAS data sets; however, you can drop the hidden column when you are creating the access descriptor. If you want to display the formula in the text format, add a label prefix character to indicate that the formula entry is a label. Otherwise, the results of the formula are displayed.

If you have set the SS_MIXED environment variable to YES, the numerical values in WKn files are converted to character strings in SAS data sets if the corresponding SAS variable type is specified as character.


DBLOAD Procedure Data Conversions

This section explains how SAS data are read into Lotus 1-2-3 data when a table is loaded. In this conversion, the SAS character data type is converted into the Lotus 1-2-3 label type and the SAS numeric type is converted into the Lotus 1-2-3 number type.

The SAS/ACCESS interface automatically converts SAS formats to the same or associated Lotus 1-2-3 formats and column widths. However, you can temporarily assign other formats and column widths to SAS variables by using the FORMAT statement. Converting SAS System Variable Formats to WKn File Data shows the SAS System variable types and formats and the WKn data types, formats, and column widths that you can assign them to.

Note:   The FORMAT statement in PROC DBLOAD only changes the format of SAS variables while you are creating and loading the WKn files. When the procedure is completed, the formats of SAS variables return to their original settings.  [cautionend]

WKn date and time values are numeric data. See How the SAS System Handles Date and Time Values for more information.

Converting SAS System Variable Formats to WKn File Data
SAS Variable Format WKn File Data
Type Data Format Data Type Column Format Column Width Number
Char $w. LABEL DEFAULT w

Char $CHARw. LABEL DEFAULT w

Num w.d
NUMBER FIXED w
d
Num Fw.d NUMBER FIXED w
d
Num Ew.d NUMBER SCIENTIFIC w
d
Num DOLLARw.d NUMBER CURRENCY w
d
Num PERCENTw.d NUMBER PERCENT w
d
Num COMMAw.d NUMBER COMMA w
d
Num BESTw. NUMBER DEFAULT w

Num BESTw. NUMBER GENERAL w

Num DATE5. NUMBER DD-MON 7
Num DATE7. NUMBER DD-MON-YY 10
Num MONYY5. NUMBER MON-YY 7
Num MMDDYY5. NUMBER MM-DD 6
Num MMDDYY8. NUMBER MM-DD-YY 9
Num TIME5. NUMBER HH-MM-SS 6
Num TIME8. NUMBER HH-MM-SS 9
Num TIME9. NUMBER HH-MM AM/PM 9
Num TIME12. NUMBER HH-MM-SS AM/PM 12


FOOTNOTE 1:  In this description, datetime (in lowercase) refers to any value or format that represents a date, a time, or both a date and time. [arrow]
