OTL Circuit Function

Description:

Dimensions: 6

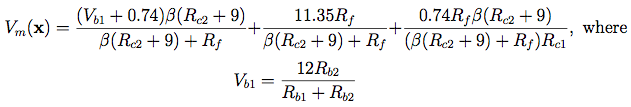

The OTL Circuit function models an output transformerless push-pull circuit.

The response V_m is midpoint voltage.

Input Domain:

The input variables and their usual input ranges are:

Rb1 ∈ [50, 150]	resistance b1 (K-Ohms)
Rb2 ∈ [25, 70]	resistance b2 (K-Ohms)
Rf ∈ [0.5, 3]	resistance f (K-Ohms)
Rc1 ∈ [1.2, 2.5]	resistance c1 (K-Ohms)
Rc2 ∈ [0.25, 1.2]	resistance c2 (K-Ohms)
β ∈ [50, 300]	current gain (Amperes)

Modifications and Alternative Forms:

For the purpose of input variable screening, Moon (2010) adds 14 input variables.

Code:

References:

Ben-Ari, E. N., & Steinberg, D. M. (2007). Modeling data from computer experiments: an empirical comparison of kriging with MARS and projection pursuit regression. Quality Engineering, 19(4), 327-338.

Moon, H. (2010). Design and Analysis of Computer Experiments for Screening Input Variables (Doctoral dissertation, Ohio State University).

Moon, H., Dean, A. M., & Santner, T. J. (2012). Two-stage sensitivity-based group screening in computer experiments. Technometrics, 54(4), 376-387.

---
